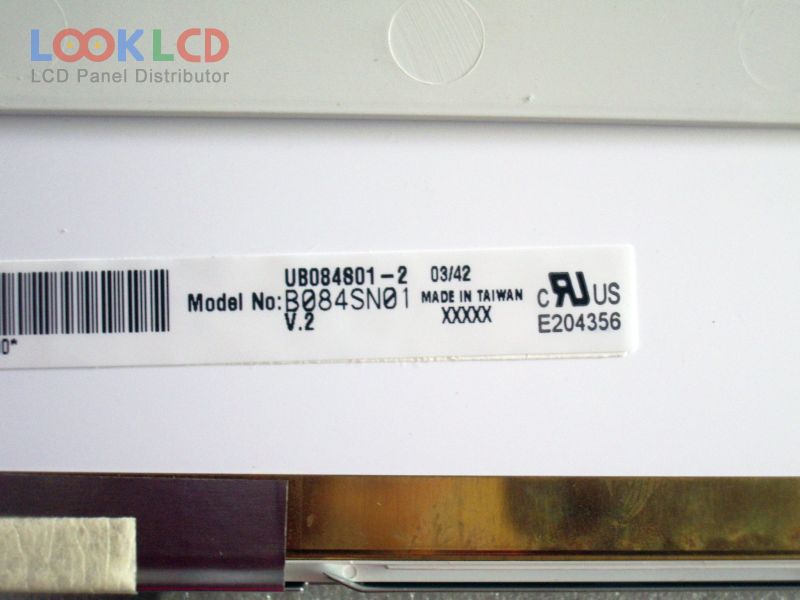

| PartNumber | B084SN01 V2 |
| Marca | AUO |
| mărimea | 8.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 120 |
| CR | 200:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AU Optronics |
| model de panou | B084SN01 V2 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 170.4×127.8 mm |
| contur | 203×142.5 mm |
| suprafaţă | |
| luminozitatea | 120 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 20/30 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
