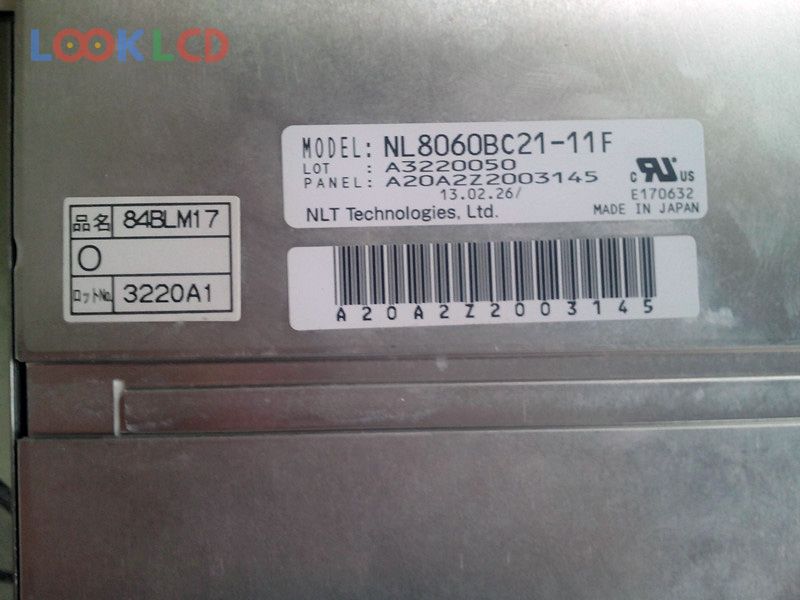

| PartNumber | NL8060BC21-11F |
| Marca | NLT |
| mărimea | 8.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 800 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL8060BC21-11F |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 170.4×127.8 mm |
| contur | 200×152×8.7 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 800 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| timp de raspuns | 3/15 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 stringsWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
