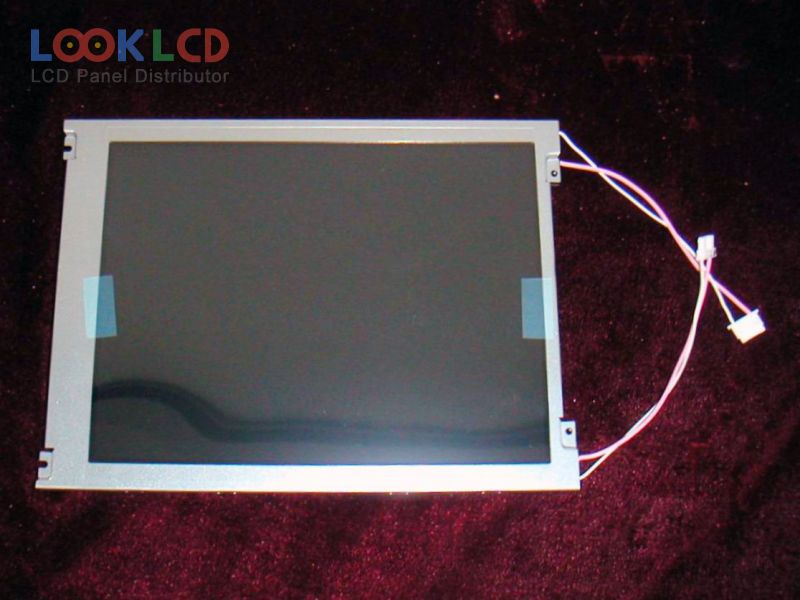

| PartNumber | MAA084DXA03 |
| Marca | Mitsubishi |
| mărimea | 8.4 |
| Aplicație | IA |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 400:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | Mitsubishi MDTI |
| model de panou | MAA084DXA03 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 171.264×128.448 mm |
| contur | 205×152.4 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| timp de raspuns | 6/19 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA084XA03 | Mitsubishi | 8.4 | 1024×768 |
| AA084XB11 | Mitsubishi | 8.4 | 1024×768 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| LQ9D011 | SHARP | 8.4 | 640×480 |
| LTM08C351 | TOSHIBA | 8.4 | 800×600 |
| MAA084DXA03 | Mitsubishi | 8.4 | 1024×768 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| T-51639D084JU-FW-A-AB | Kyocera | 8.4 | 1024×768 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| KCB6448BSTT-X11 | Kyocera | 10.4 | 640×480 |
| LB121S03-TL01 | LG Display | 12.1 | 800×600 |
| LJ089MB2S01 | SHARP | 8.9 | 640×400 |
| LM24P20 | SHARP | 5.7 | 240×128 |
| LQ025Q3DW01 | SHARP | 2.5 | 320×240 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| LQ121S1DG42 | SHARP | 12.1 | 800×600 |
| UG-2864ASGPG01 | WiseChip | 2.4 | 128×64 |
