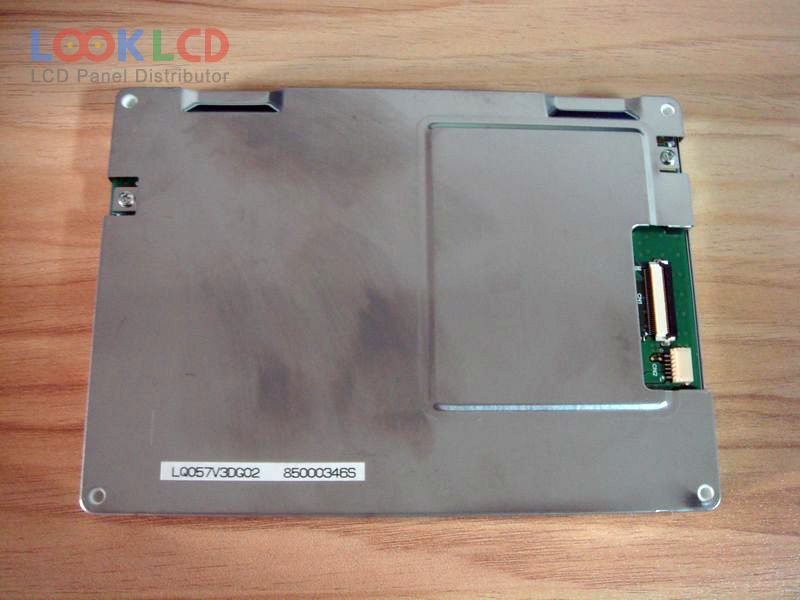

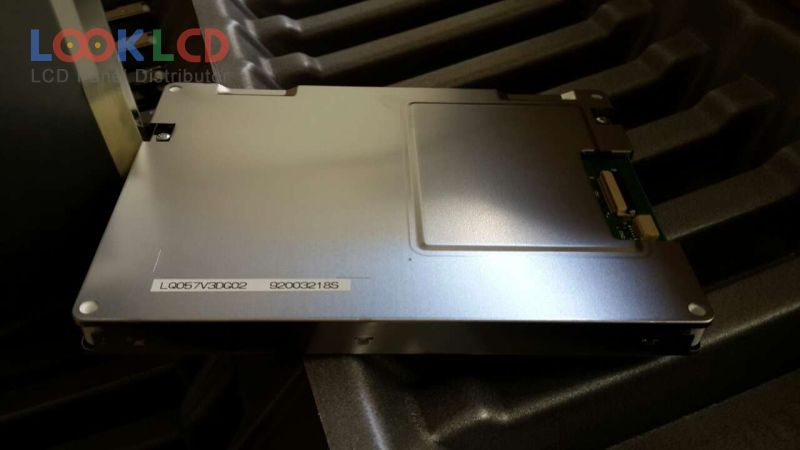

| PartNumber | LQ057V3DG02 |
| Marca | SHARP |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ057V3DG02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 144×104.6×13.5 mm |
| suprafaţă | Antiglare |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 8/21 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/70 (Typ.)(CR≥5)(L/R/U/D) |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 33 pins |
| tensiune de intrare | 3.3V (Typ.)(VCC) |
| aplicarea | IA |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| LM057QB1T09 | SHARP | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| AA065VE11ADA11 | Mitsubishi | 6.5 | 640×480 |
| DMF5005N-EB | Kyocera | 5.2 | 240×64 |
| EL160.80.50 IN LC CC | Lumineq | 3.5 | 160×80 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| LQ121S1LG41 | SHARP | 12.1 | 800×600 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| LTA121C250F | TOSHIBA | 12.1 | 1024×768 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| RGS32256064YH001 | RiTdisplay | 3.2 | 256×64 |
