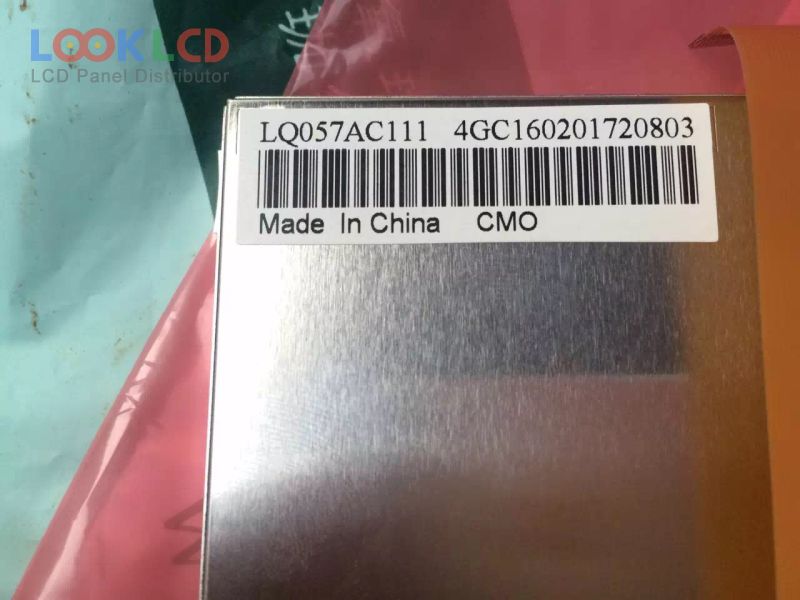

| PartNumber | LQ057AC111 |
| Marca | Other |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 200:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Parallel/Serial |
| marca panoului | CHILIN |
| model de panou | LQ057AC111 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 126×101.55 mm |
| suprafaţă | Antiglare |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Typ.) |
| culorile afișajului | 16.7M |
| timp de raspuns | 15/35 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S7PWLEDWithout Driver |
| interfață de semnal | Digital RGB (8/24-bit), CCIR601/656, 50 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VDD/AVDD) |
| aplicarea | IA |
