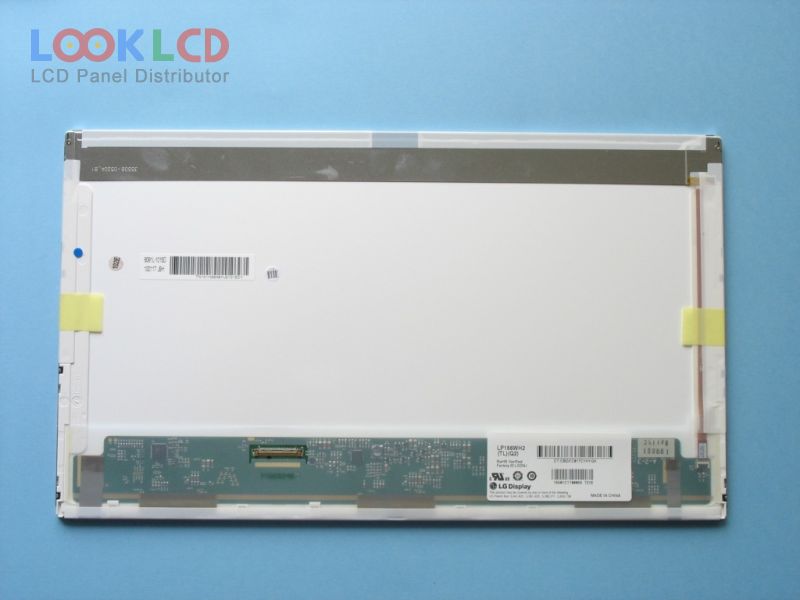

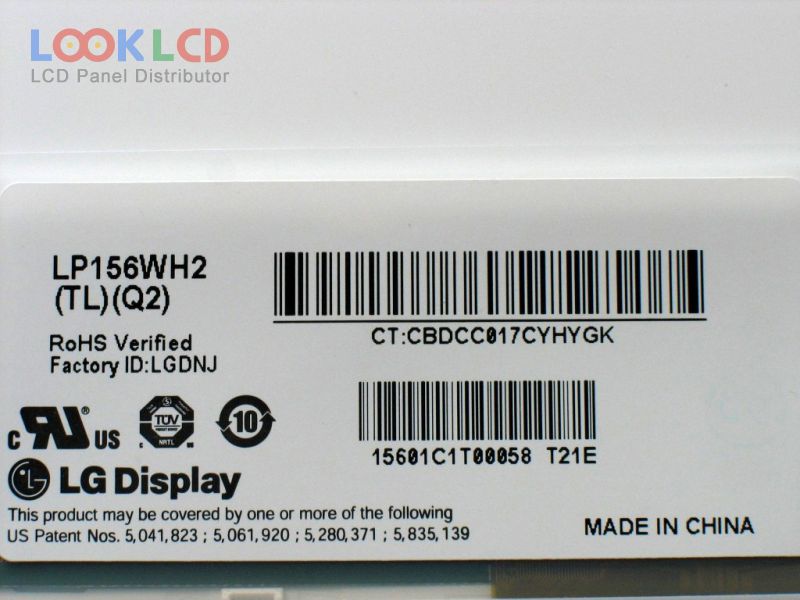

| PartNumber | LP156WH2-TLQ2 |
| Marca | LG Display |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP156WH2-TLQ2 61 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.232×193.536 mm |
| contur | 359.3×209.5×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TLA2 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLL1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| B140RW01 V2 | AUO | 14.0 | 1600×900 |
| B173RW01 V2 HW7A | AUO | 17.3 | 1600×900 |
| LP133WX2-TLG1 | LG Display | 13.3 | 1280×800 |
| LP154WP1-TLA1 | LG Display | 15.4 | 1440×900 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LTM11C307S | TOSHIBA | 11.3 | 1024×768 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| N121X5-L04 | Innolux | 12.1 | 1024×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
| NL12876BC15-01 | NLT | 8.9 | 1280×768 |
