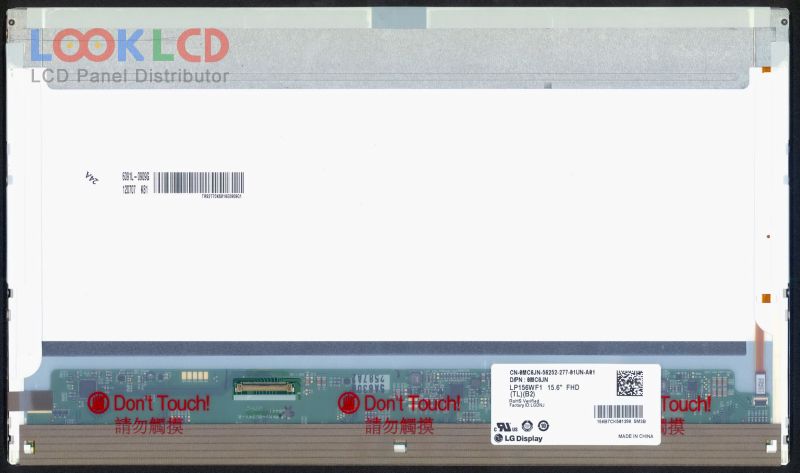

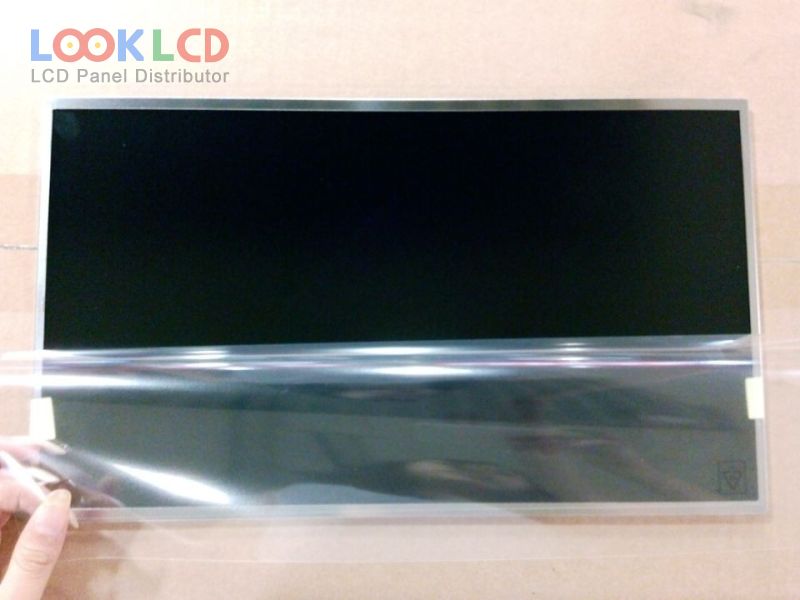

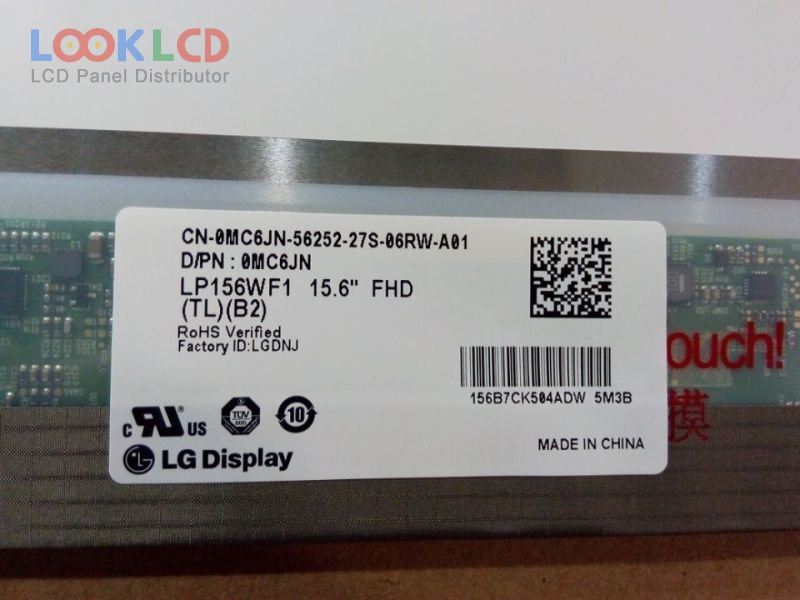

| PartNumber | LP156WF1-TLB2 |
| Marca | LG Display |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP156WF1-TLB2 20 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.16×193.59 mm |
| contur | 359.3×209.5×5.8 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 50/50/40/40 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 stringsWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TLA2 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLBA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPD1 | LG Display | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| HSD173PUW1-A01 | HannStar | 17.3 | 1920×1080 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LP171WX2-A4K1 | LG Display | 17.1 | 1440×900 |
| LT121SU-121 | Samsung | 12.1 | 800×600 |
| LTD121EXPV | TOSHIBA | 12.1 | 1280×800 |
| LTN170WA-L01 | Samsung | 17.0 | 1440×900 |
| LTN173HT02-C01 | Samsung | 17.3 | 1920×1080 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N141XC-L02 | Innolux | 14.1 | 1024×768 |
