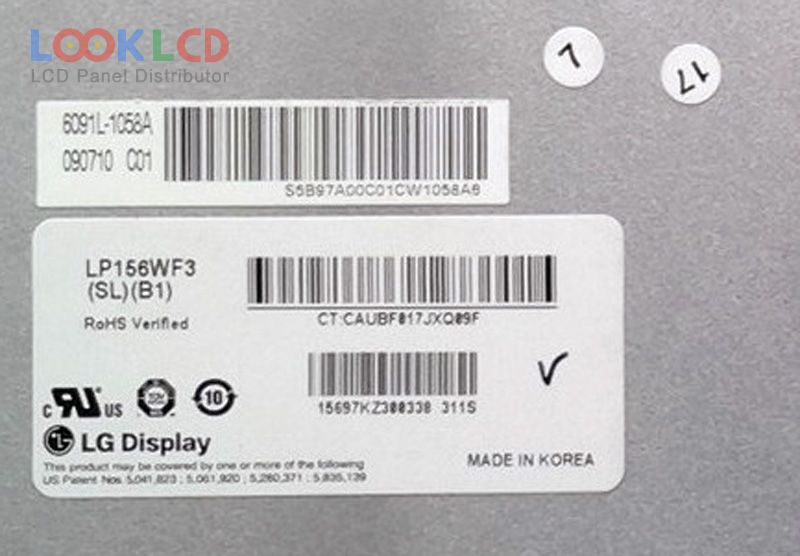

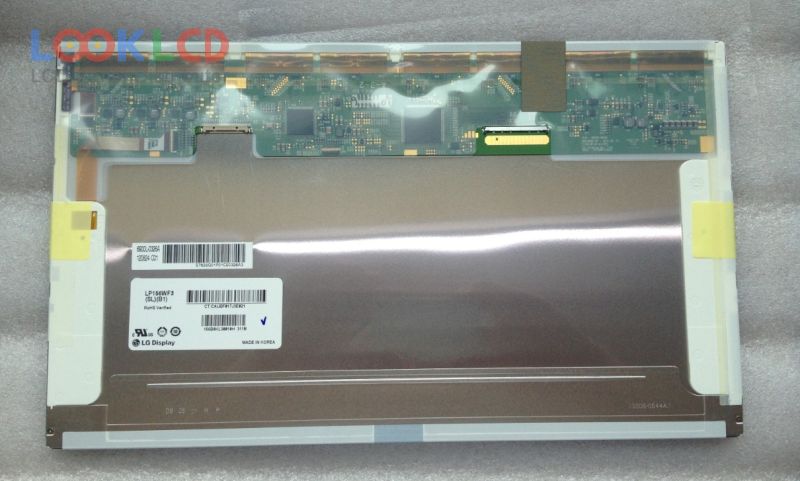

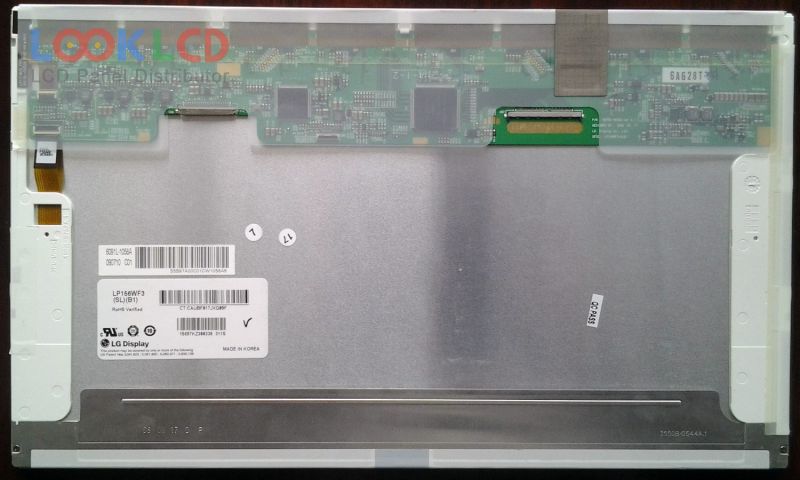

| PartNumber | LP156WF3-SLB1 |
| Marca | LG Display |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 210 |
| CR | 800:1 |
| Culori | 1.07B |
| Iluminare de fundal | RGB LED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP156WF3-SLB1 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | S-IPS, Normally Black, Transmissive |
| Zonă activă | 344.16×193.59 mm |
| contur | 359.3×212.1×7.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 210 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 1.07B (10-bit), CIE1931110% |
| timp de raspuns | 30 (Typ.)(Tr+Td); 15 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | RGB LEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 10-bit), 50 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
