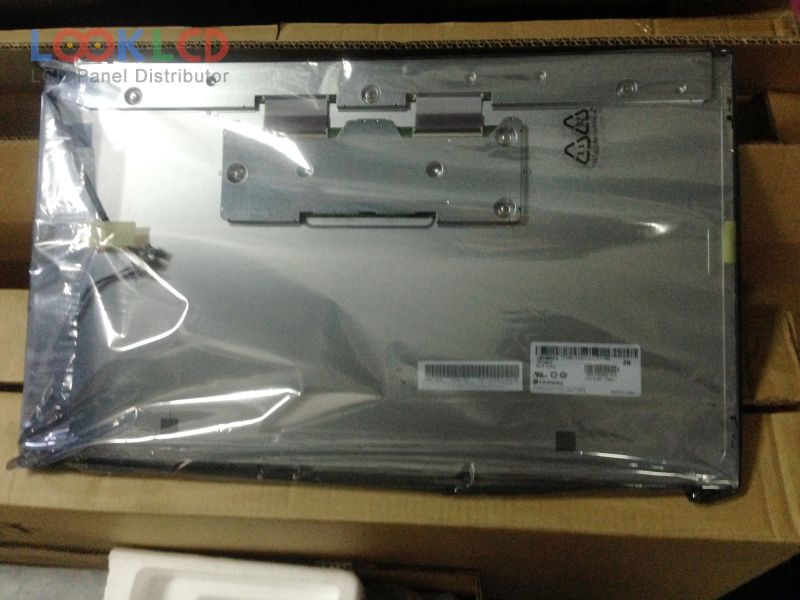

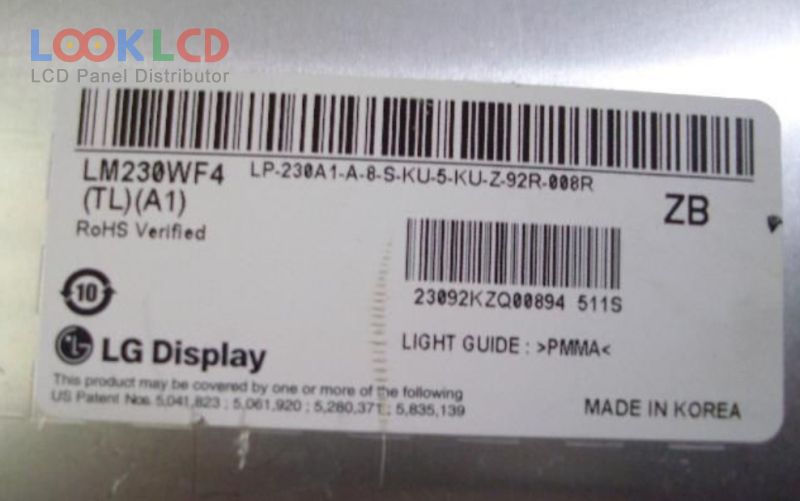

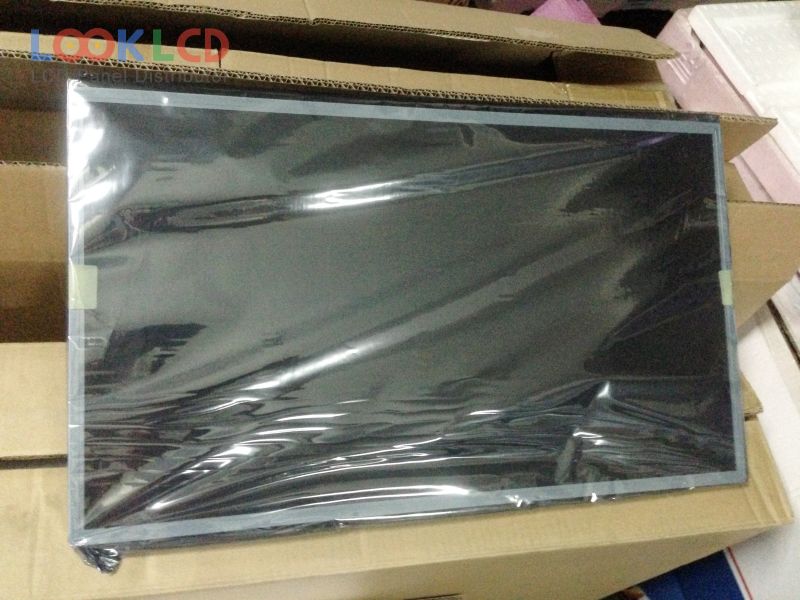

| PartNumber | LM230WF4-TLA1 |
| Marca | LG Display |
| mărimea | 23.0 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LM230WF4-TLA1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 23.0 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 509.184×286.416 mm |
| contur | 533.2×312 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 1/4 (Typ.)(Tr/Td); 3 (Typ.)(G to G) |
| unghi de vedere | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (4 ch, 8-bit), 92 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | DMPC |
