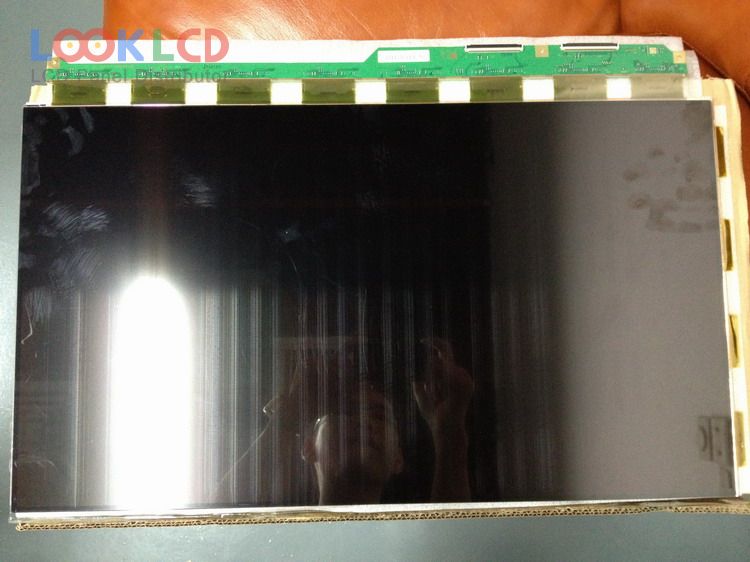

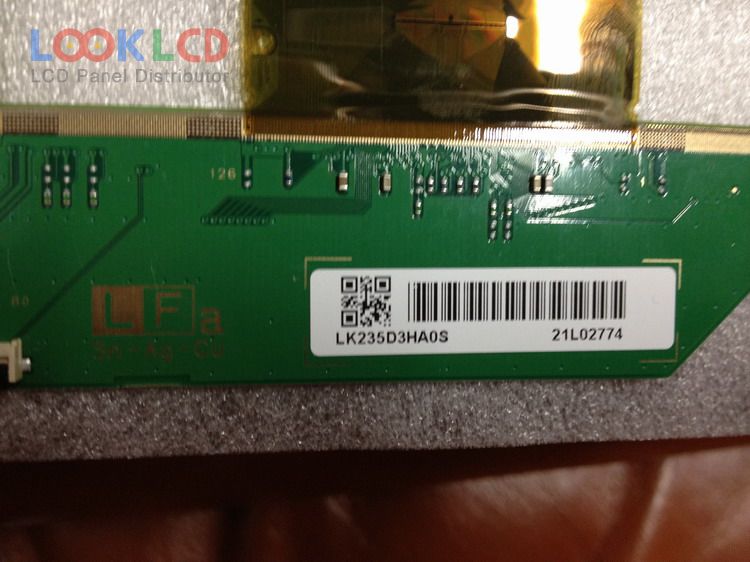

| PartNumber | LK235D3HA0S |
| Marca | SHARP |
| mărimea | 23.6 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 5000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | Mini LVDS |
| marca panoului | SHARP |
| model de panou | LK235D3HA0S |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 23.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | ASV, Normally Black, Transmissive |
| Zonă activă | 521.28×293.22 mm |
| contur | 532.875×303.7 mm |
| suprafaţă | Antiglare (Haze 2%), Hard coating (3H) |
| transmisivitatea | 4.5% (Typ.)(with Polarizer) |
| Raport de contrast | 5000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 4 (Typ.)(G to G) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 240Hz |
| interfață de semnal | Mini LVDS, 160 pins |
| aplicarea | DMPC |
