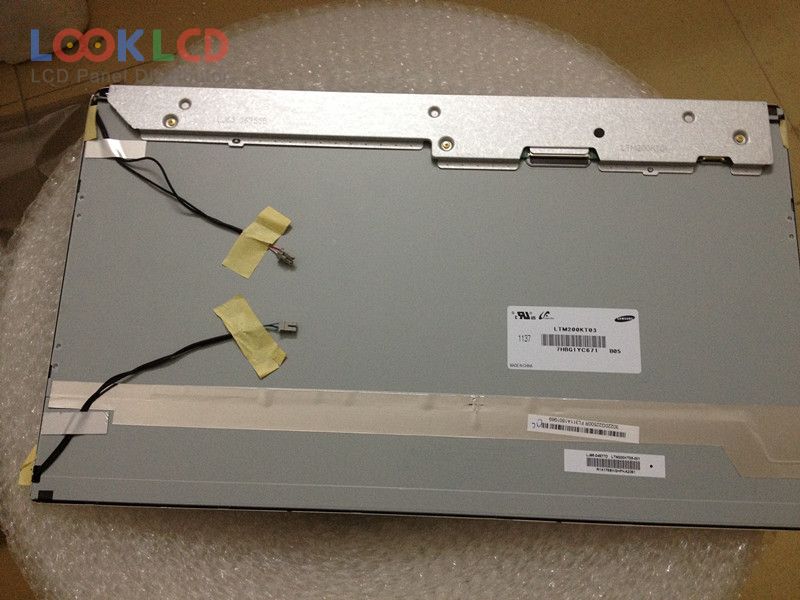

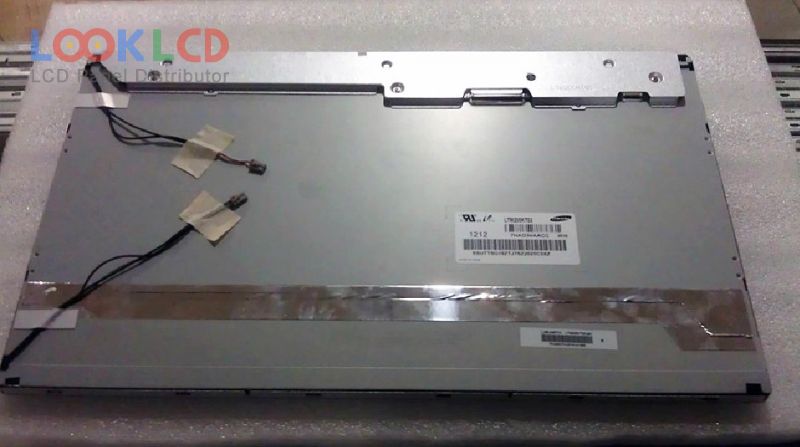

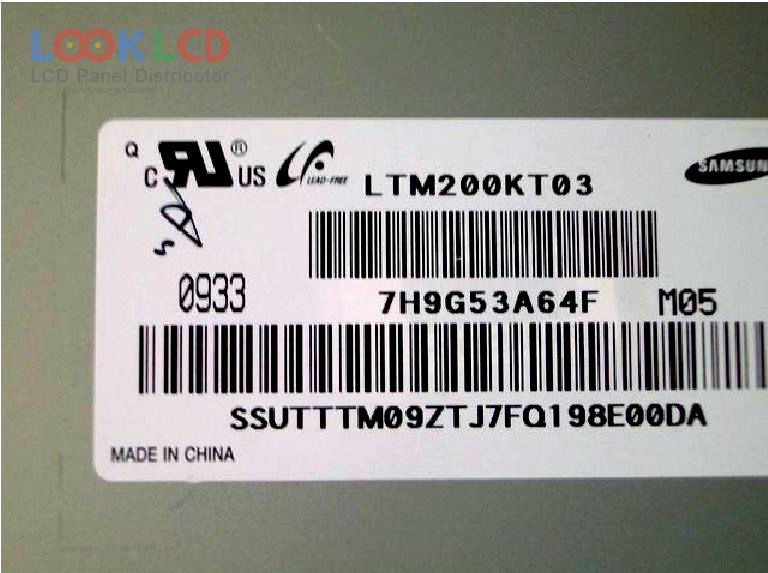

| PartNumber | LTM200KT03 |
| Marca | Samsung |
| mărimea | 20.0 |
| Aplicație | DMPC |
| Rezoluţie | 1600×900 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM200KT03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 20.0 inch |
| rezoluţie | 1600(RGB)×900 , HD+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 442.8×249.075 mm |
| contur | 462.8×272×17.5 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 5 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
