| PartNumber | M215HW03 V1Q0 |
| Marca | AUO |
| mărimea | 21.5 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Mini LVDS |
| marca panoului | AUO |
| model de panou | M215HW03 V1Q0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 21.5 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 476.64×268.11 mm |
| contur | 495.6×292.2×8.8 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 3.8/1.2 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 16S4PWLEDWithout Driver |

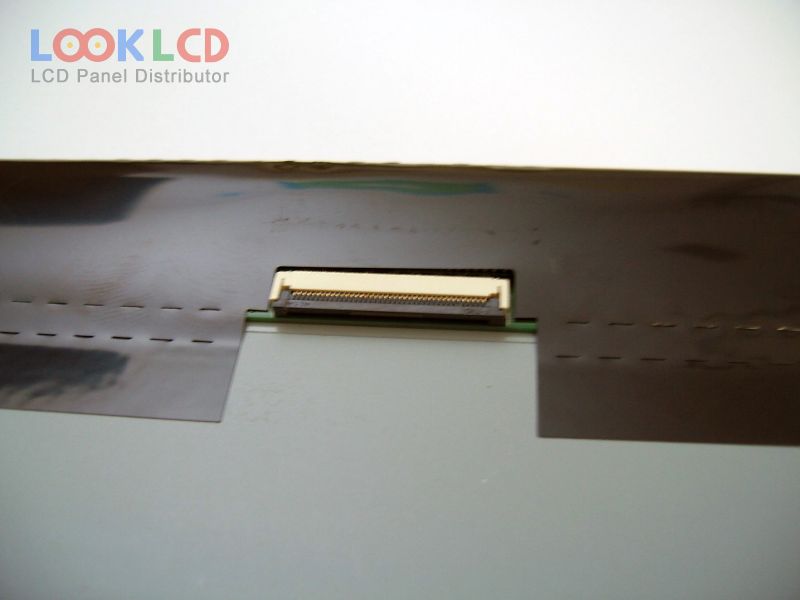

| interfață de semnal | Mini LVDS, 40 pins |
| tensiune de intrare | 3.3/12.8/27.0/-10.3V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | DMPC |
