| PartNumber | M220Z1-L05 |
| Marca | Innolux |
| mărimea | 22.0 |
| Aplicație | DMPC |
| Rezoluţie | 1680×1050 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | M220Z1-L05 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 22.0 inch |
| rezoluţie | 1680(RGB)×1050 , WSXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 473.76×296.1 mm |
| contur | 493.7×320.1 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193192% |
| timp de raspuns | 1.3/3.7 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |

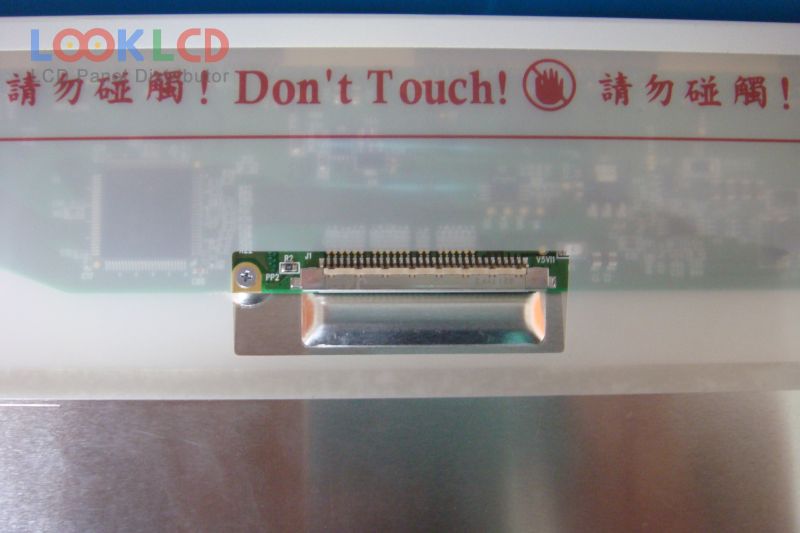

| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
