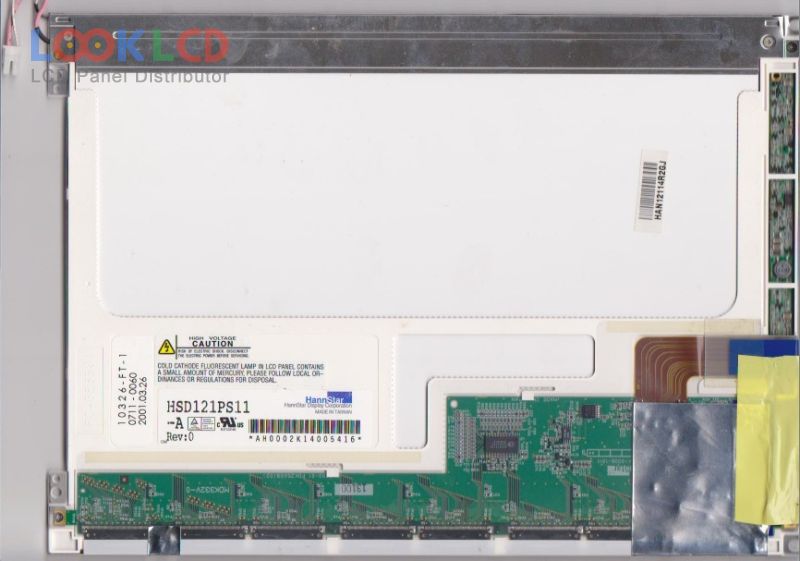

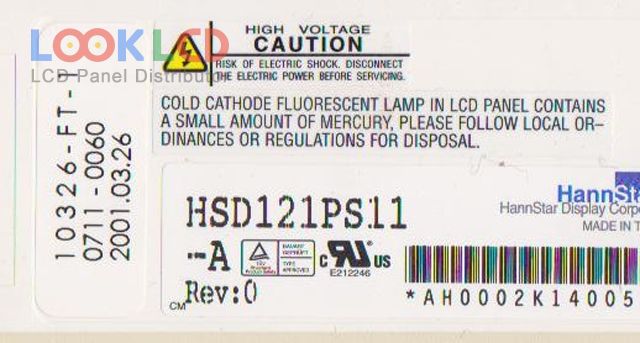

| PartNumber | HSD121PS11-A |
| Marca | HannStar |
| mărimea | 12.1 |
| Aplicație | NBPC |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 135 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD121PS11-A 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 275×199×6 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 135 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 15/30 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B121EW03 V3 | AUO | 12.1 | 1280×800 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| HSD121MS11-A | HannStar | 12.1 | 800×600 |
| HSD121PHW1-A01 | HannStar | 12.1 | 1366×768 |
| HSD121PHW1-A03 | HannStar | 12.1 | 1366×768 |
| HSD121PHW2-A00 | HannStar | 12.1 | 1366×768 |
| HSD121PS11-A | HannStar | 12.1 | 800×600 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| LTN121AT01-001 | Samsung | 12.1 | 1280×800 |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| B156XTT01.0 | AUO | 15.6 | 1366×768 |
| LP141WX5-TLB1 | LG Display | 14.1 | 1280×800 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP173WD1-TLA1 | LG Display | 17.3 | 1600×900 |
| LTM12C283 | TOSHIBA | 12.1 | 800×600 |
| LTN156AT02-B04 | Samsung | 15.6 | 1366×768 |
| N140HCE-EBA | Innolux | 14.0 | 1920×1080 |
| N156O6-L04 | Innolux | 15.6 | 1600×900 |
| TX39D80VC1GAA | KOE | 15.4 | 1280×800 |
