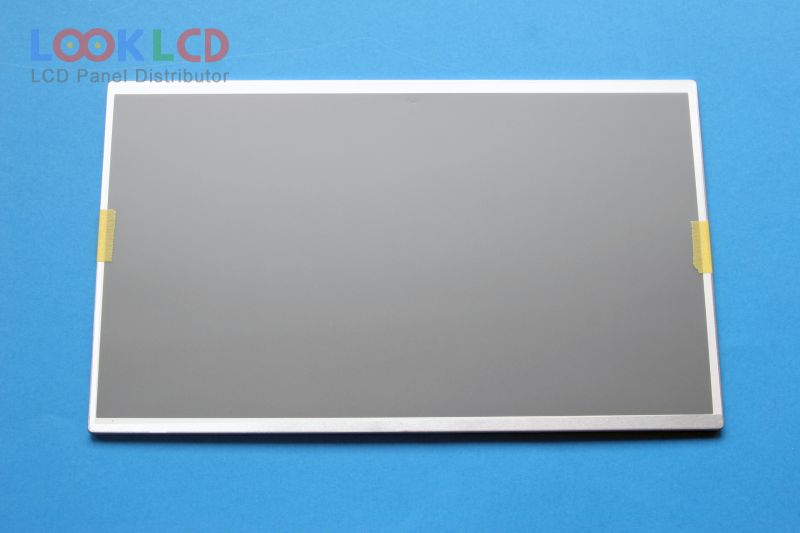

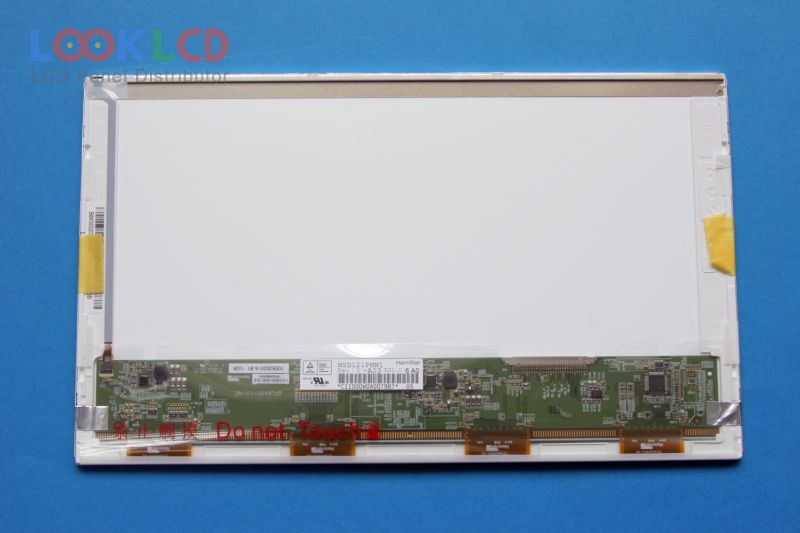

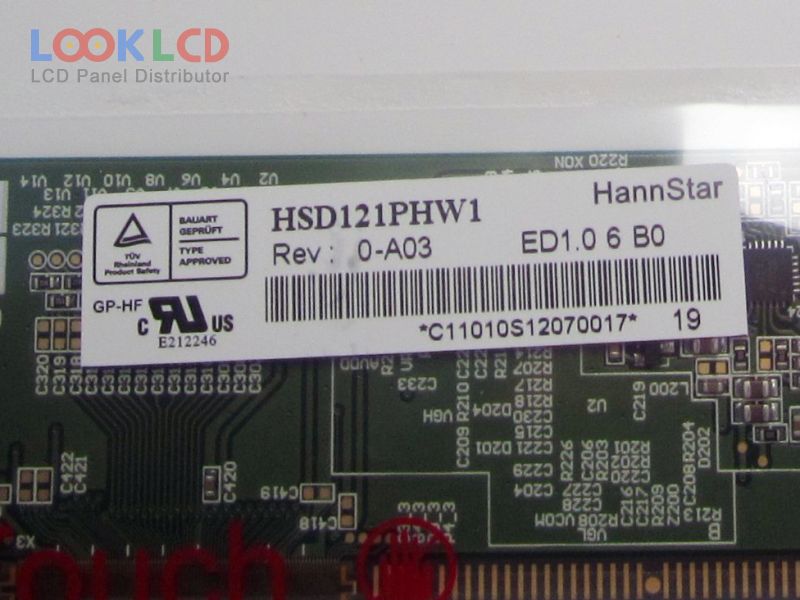

| PartNumber | HSD121PHW1-A03 |
| Marca | HannStar |
| mărimea | 12.1 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD121PHW1-A03 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 268.01×150.68 mm |
| contur | 279×167.2×5.1 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 3/9 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
