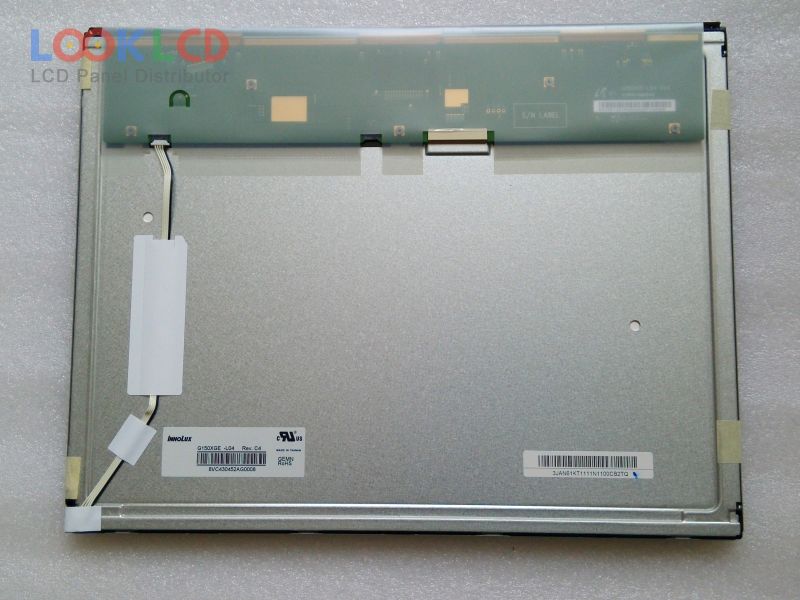

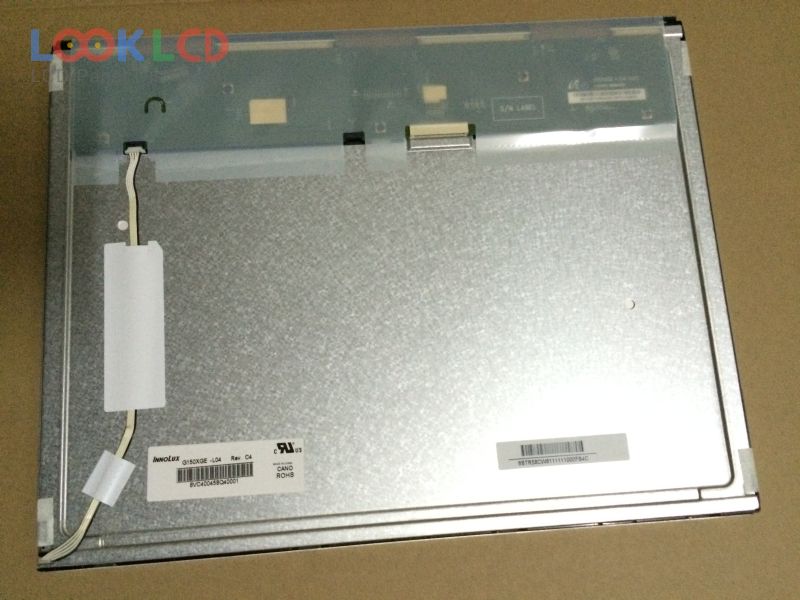

| PartNumber | G150XGE-L04 Rev.C4 |
| Marca | Innolux |
| mărimea | 15.0 |
| Aplicație | IA |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 700:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | INNOLUX |
| model de panou | G150XGE-L04 Rev.C4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 304.128×228.096 mm |
| contur | 326.5×253.5×12 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193155% |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AA150XT01 | Mitsubishi | 15.0 | 1024×768 |
| G150XG01 V4 | AUO | 15.0 | 1024×768 |
| G150XGE-L04 | Innolux | 15.0 | 1024×768 |
| G150XGE-L04 Rev.C4 | Innolux | 15.0 | 1024×768 |
| G150XGE-L05 | Innolux | 15.0 | 1024×768 |
| G150XGE-L06 | Innolux | 15.0 | 1024×768 |
| G150XGE-L07 | Innolux | 15.0 | 1024×768 |
| LB150X03-TL02 | LG Display | 15.0 | 1024×768 |
| SVA150XG10TB | SVA-NEC | 15.0 | 1024×768 |
| TX38D03VM1AAA | KOE | 15.0 | 1024×768 |
| DMF5003NF-FW | Kyocera | 4.7 | 160×128 |
| G150XGE-L04 Rev.C4 | Innolux | 15.0 | 1024×768 |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| LC064N1 | LG Display | 6.4 | 640×480 |
| LM065HB1T01 | SHARP | 6.5 | 640×240 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| RGS10096064FR020 | RiTdisplay | 0.95 | 96×64 |
| TCG070WVLBA-A00 | Kyocera | 7.0 | 800×480 |
| TX26D12VM0APA | KOE | 10.4 | 800×600 |
