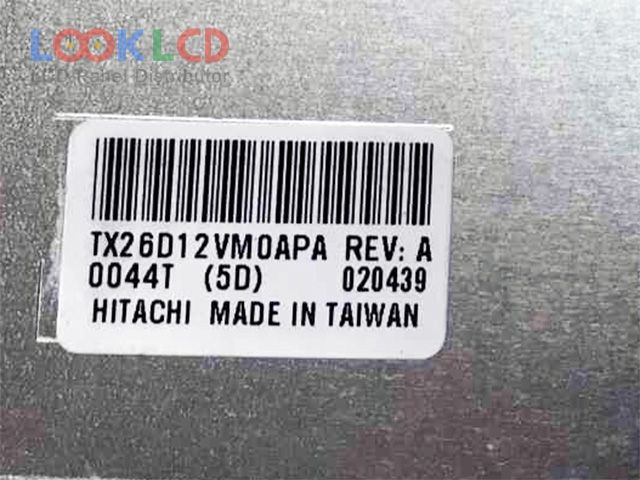

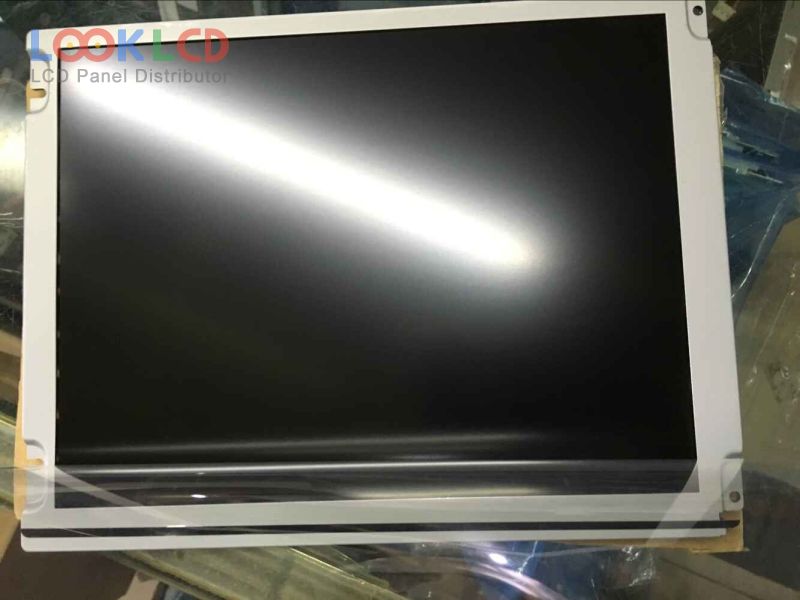

| PartNumber | TX26D12VM0APA |
| Marca | KOE |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 360 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HITACHI |
| model de panou | TX26D12VM0APA |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 243×185.1 mm |
| suprafaţă | Antiglare |
| luminozitatea | 360 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193154% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S8PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
