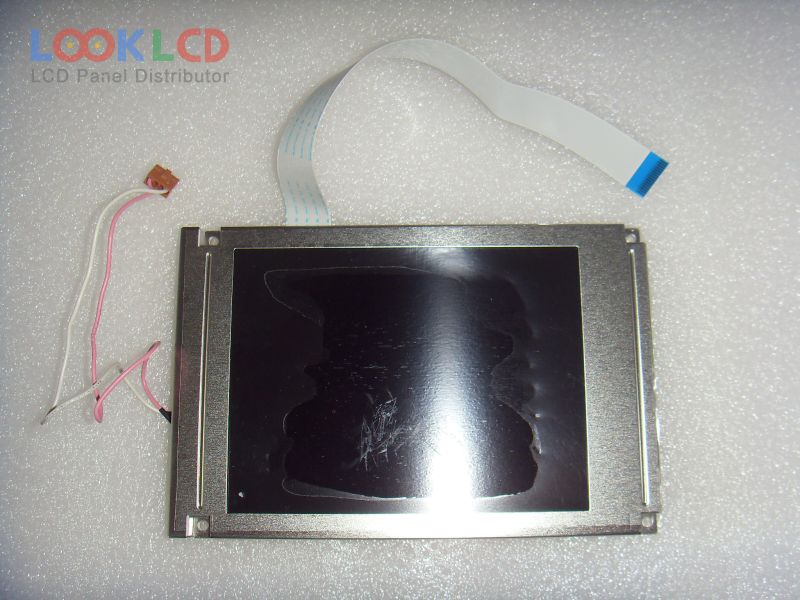

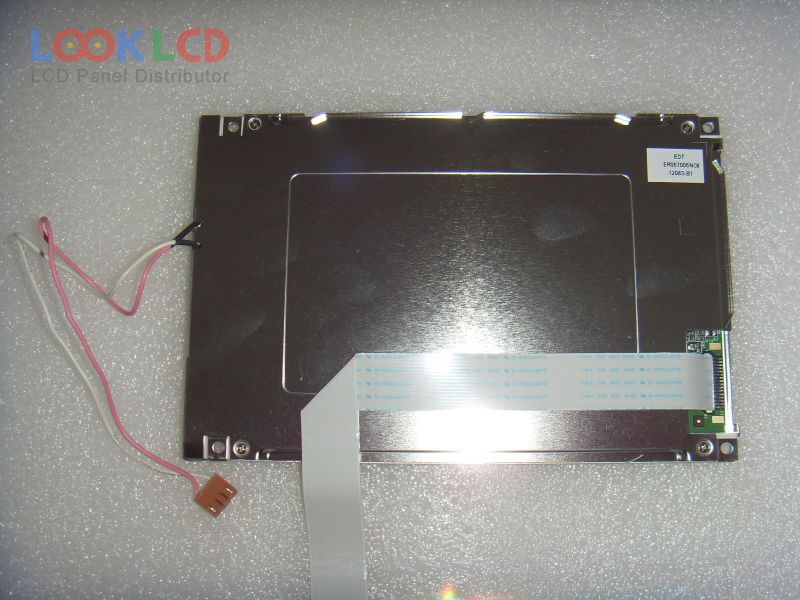

| PartNumber | ER057005NC6 |
| Marca | EDT |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 150 |
| CR | 50:1 |
| Culori | Color |
| Iluminare de fundal | CCFL |
| Interfață | Parallel Data |
| marca panoului | EDT |
| model de panou | ER057005NC6 |
| tip panou | CSTN-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | STN, Normally Black, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 167×109×9.4 mm |
| suprafaţă | |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 50:1 (Typ.) |
| culorile afișajului | Color |
| timp de raspuns | 350/250 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/20/40 (Typ.)(CR≥2)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel Data (8-bit), 16 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VDD) |
| aplicarea | IA |
