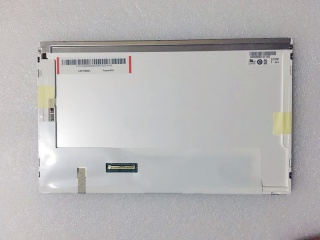

| PartNumber | G101STN01.6 |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | Industrial |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| producător | AUO |
| numele modelului | G101STN01.6 |
| marimea ecranului | 10.1 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 1024(RGB)×600 (WSVGA) 117PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 222.72 × 125.28 (H×V) |
| contur (mm) | 235 × 143 × 5.2 (H×V×D) |
| zona rama (mm) | 226.34 × 128.10 (H×V) |
| tratament | Antiglare, Hard coating (3H) |
| luminanţă | 250 cd/m² (Typ.) |
| Raport de contrast | 500 : 1 (Typ.) (TM) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10) |
| raspuns | 7/9 (Typ.)(Tr/Td) ms |
| vedere buna la | - |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 262K/16.7M 45% NTSC |
| lumina de fundal | WLED , 15K hours , With LED Driver |
| masa | 180g (Typ.) |
| folosit pentru | Industrial |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
