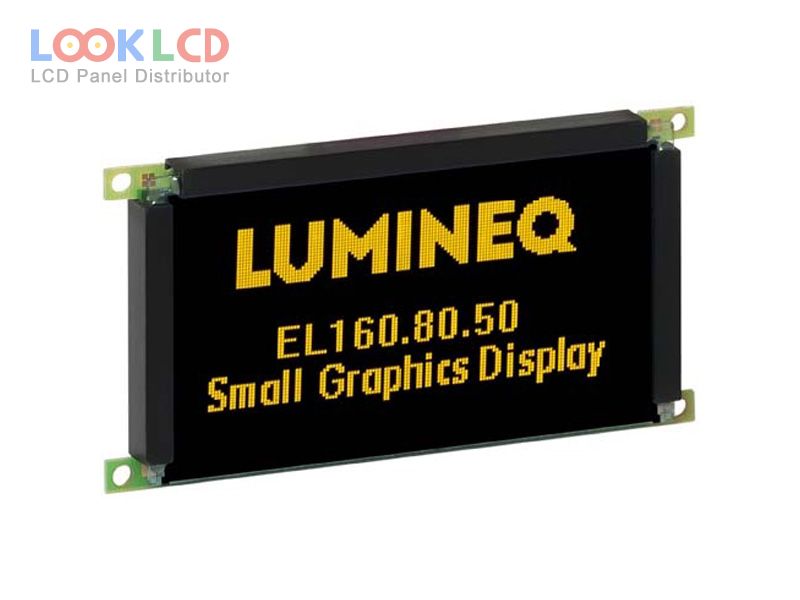

| PartNumber | EL160.80.50 IN |
| Marca | Lumineq |
| mărimea | 3.5 |
| Aplicație | IA |
| Rezoluţie | 160×80 |
| Compoziţie | EL |
| Luminozitate | 80 |
| CR | 50:1 |
| Culori | Mono(Yellow) |
| Iluminare de fundal | self |
| Interfață | Parallel Data |
| marca panoului | Lumineq |
| model de panou | EL160.80.50 IN |
| tip panou | EL , EL |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 160×80 |
| Zonă activă | 79.9×39.9 mm |
| contur | 108.9×57.2 mm |
| suprafaţă | |
| luminozitatea | 80 cd/m² (Typ.) |
| Raport de contrast | 50 : 1 (Typ.) |
| culorile afișajului | Mono(Yellow) (1-bit) |
| unghi de vedere | 89/89/89/89 (Typ.)(L/R/U/D) |
| frecvență | 240Hz |
| interfață de semnal | Parallel Data (1ch, 4-bit), 20 pins |
| tensiune de intrare | 5/12V (Typ.)(VL/VH) |
| aplicarea | IA |
