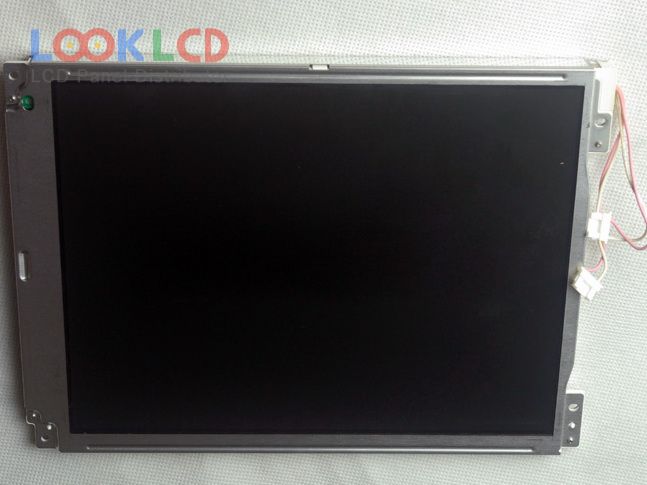

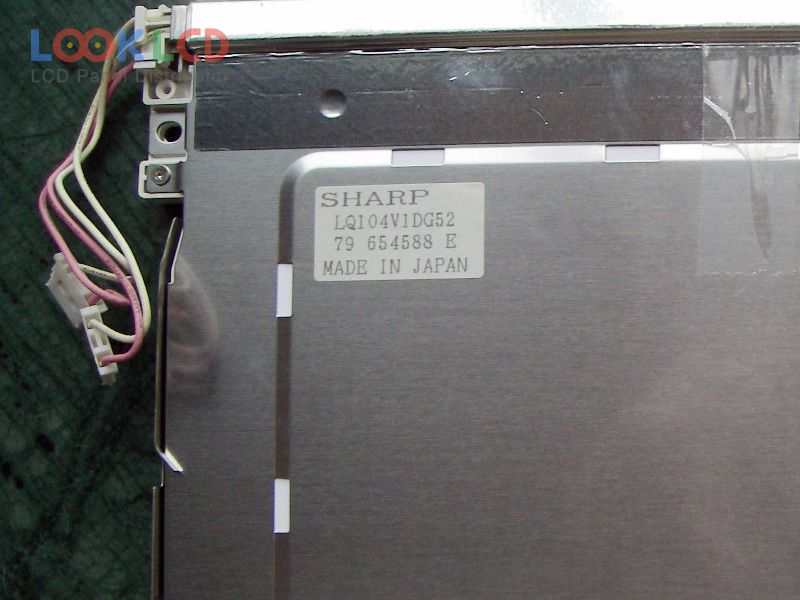

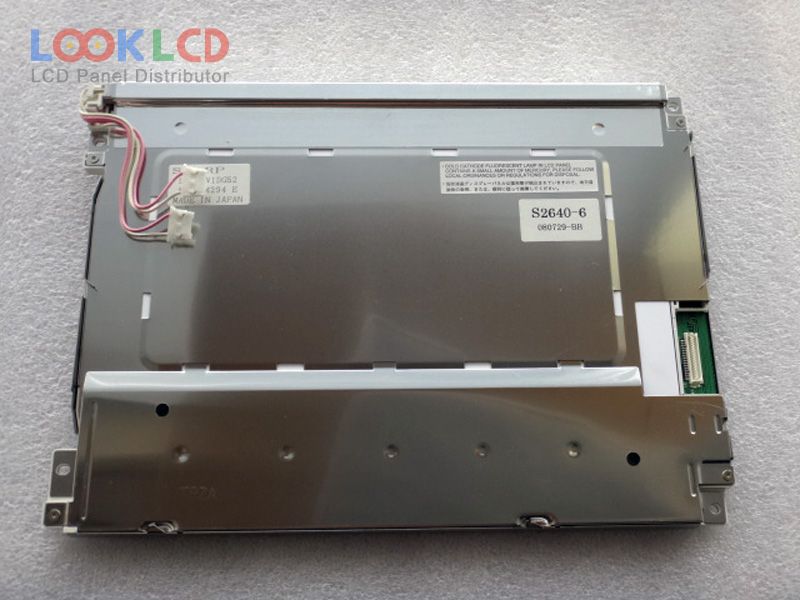

| PartNumber | LQ104V1DG52 |
| Marca | SHARP |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ104V1DG52 4 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 246.5×179.4×15.5 mm |
| suprafaţă | Antiglare, Hard coating (3H), Antireflection |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/25 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 3.3/5.0V (Typ.) |
| aplicarea | IA |
