| PartNumber | COM104T9M10ERS |
| Marca | Ortustech |
| mărimea | 10.4 |
| Aplicație | Industrial |
| Rezoluţie | 800×600 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | Ortustech |
| model | COM104T9M10ERS |
| dimensiunea diagonalei | 10.4 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×600 [SVGA] 96PPI |
| configurație | RGB Vertical Stripe |

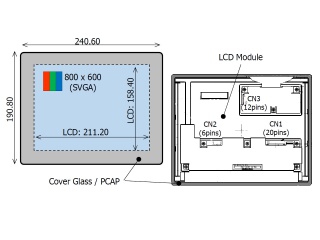

| Zonă activă | 211.2(H)×158.4(V) mm |
| contur dim. | 240(H)×190.8(V) mm |
| luminanţă | 480 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 40 (Max.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Min.)(CR≥10) |
| mod de operare | FFS, Normally Black, Transmissive |
| culoare suport | 262K/16.7M 50% NTSC |
| sursă de lumină | WLED , 70K hours , With LED Driver |
| greutate | - |
| proiectat pentru | Industrial |
| rata de cadre | 60Hz |
| panou tactil | PCAP |
| tipul de interfață | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
