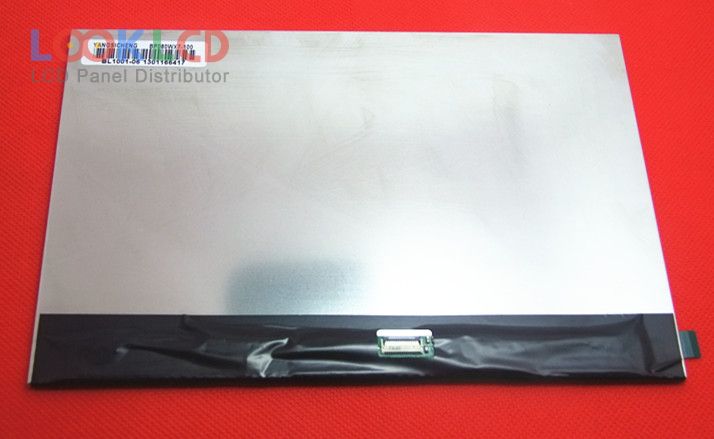

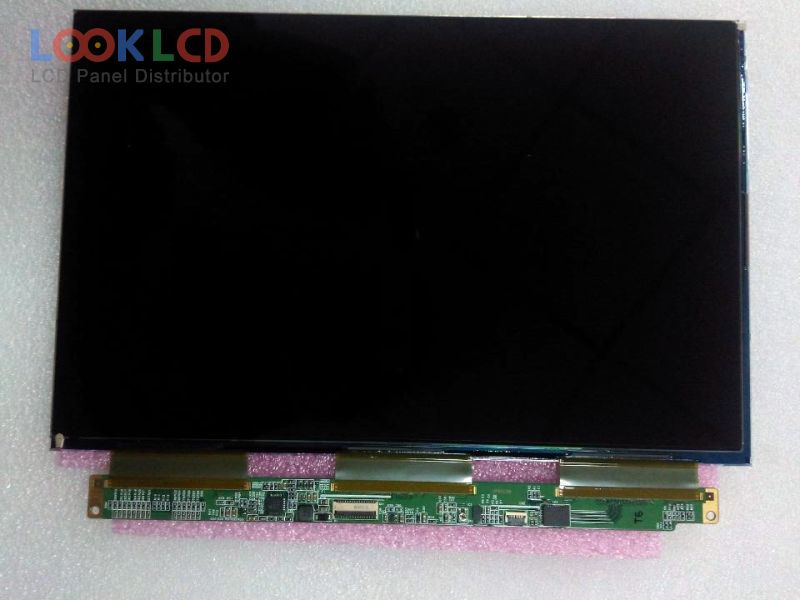

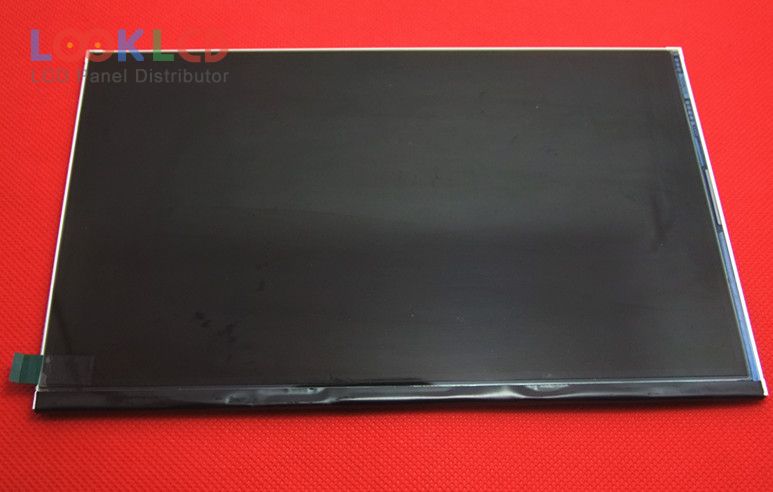

| PartNumber | BP080WX7-100 |
| Marca | BOE |
| mărimea | 8.0 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | MIPI |
| marca panoului | BOE |
| model de panou | BP080WX7-100 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 172.224×107.64 mm |
| contur | 179.6×116.9×0.793 mm |
| suprafaţă | Hard coating (3H) |
| adâncimea sticlei | 0.25+0.25 mm |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193155% |
| timp de raspuns | 24 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | MIPI (4 data lanes), 31 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| BP080WX7-100 | BOE | 8.0 | 1280×800 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| HSD080IDW1-A00 | HannStar | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HSD100PXN1-A00-C40 | HannStar | 10.0 | 1024×768 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTN097QL01-A02 | Samsung | 9.7 | 2048×1536 |
