| PartNumber | B173HTN01.1 |
| Marca | AUO |
| mărimea | 17.3 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | AUO |
| model de panou | B173HTN01.1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.3 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 381.888×214.812 mm |
| contur | 398.1×233.3×6 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193172% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |

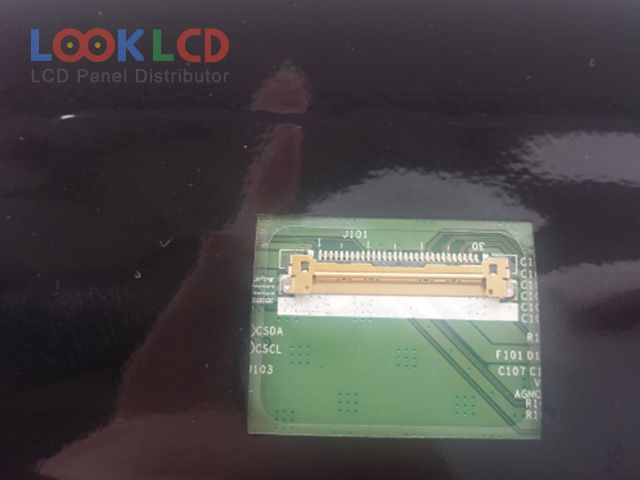

| interfață de semnal | eDP (2 Lanes), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
