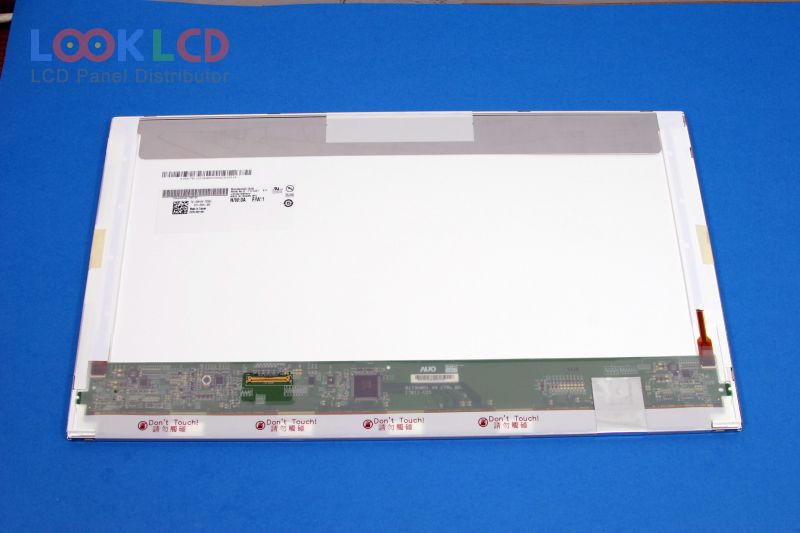

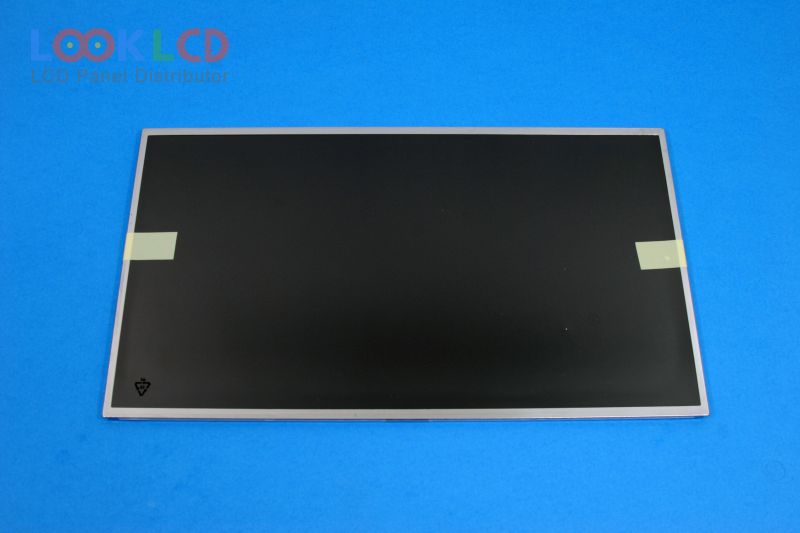

| PartNumber | B173HW01 V4 |
| Marca | AUO |
| mărimea | 17.3 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B173HW01 V4 5 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.3 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 381.888×214.812 mm |
| contur | 398.1×232.8×6 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |

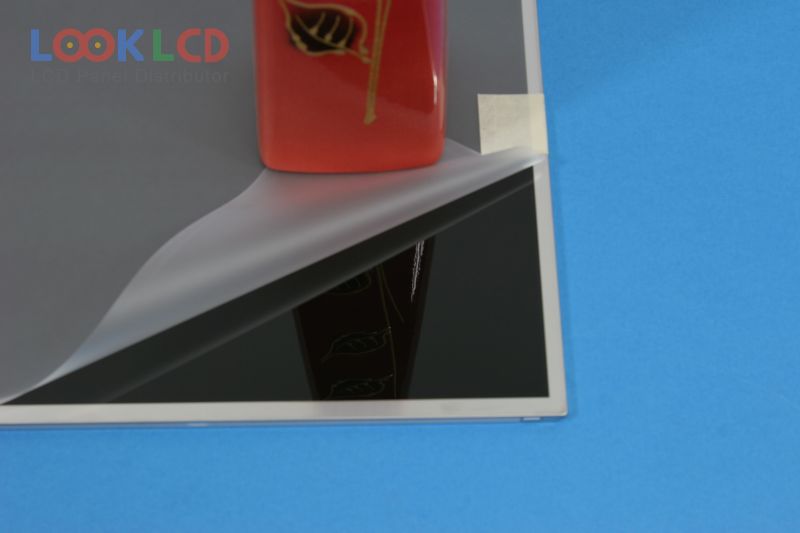

| suprafaţă | Glare (Haze 0%), Hard coating (4H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193190% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| G173HW01 V0 | AUO | 17.3 | 1920×1080 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN2 | LG Display | 17.3 | 1600×900 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
| B140XTN01.3 | AUO | 14.0 | 1366×768 |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLE3 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LP156WH3-TLE1 | LG Display | 15.6 | 1366×768 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN154BT05-D01 | Samsung | 15.4 | 1440×900 |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
