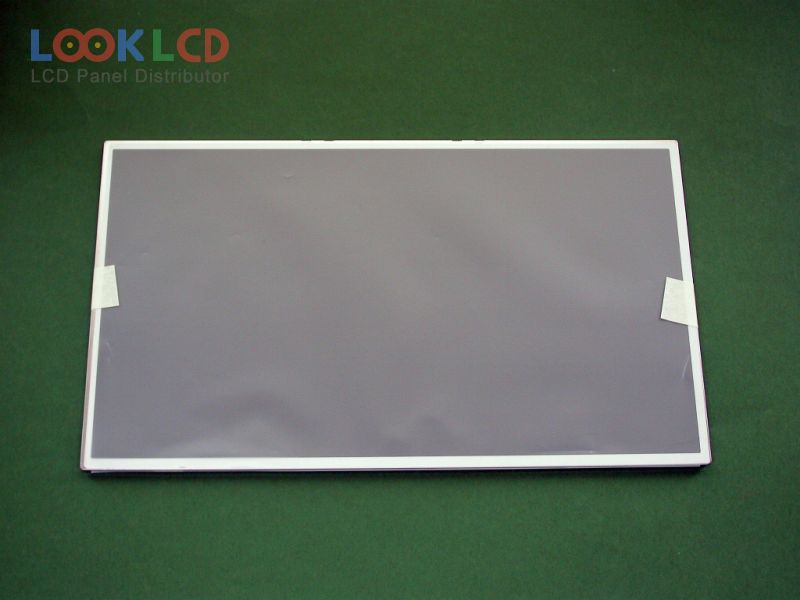

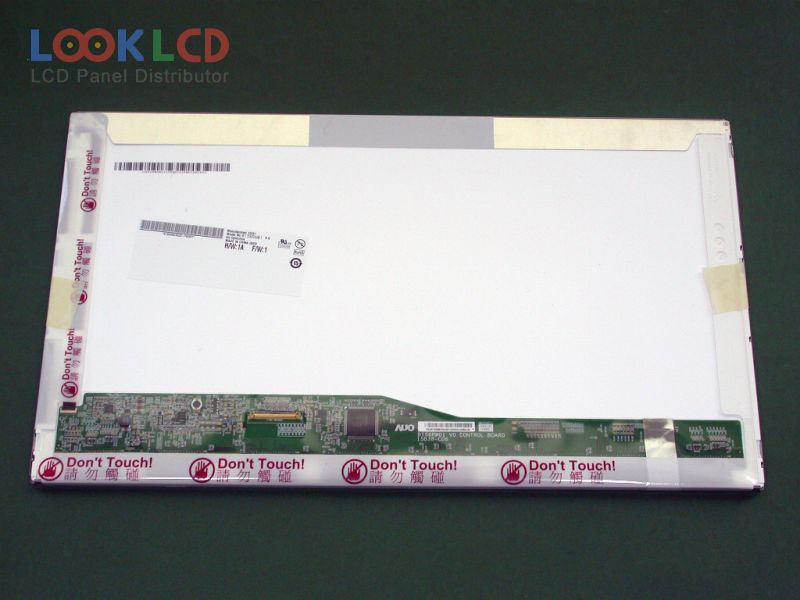

| PartNumber | B156RW01 V0 |
| Marca | AUO |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1600×900 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B156RW01 V0 10 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1600(RGB)×900 , HD+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.16×193.59 mm |
| contur | 359.3×209.5×5.7 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |

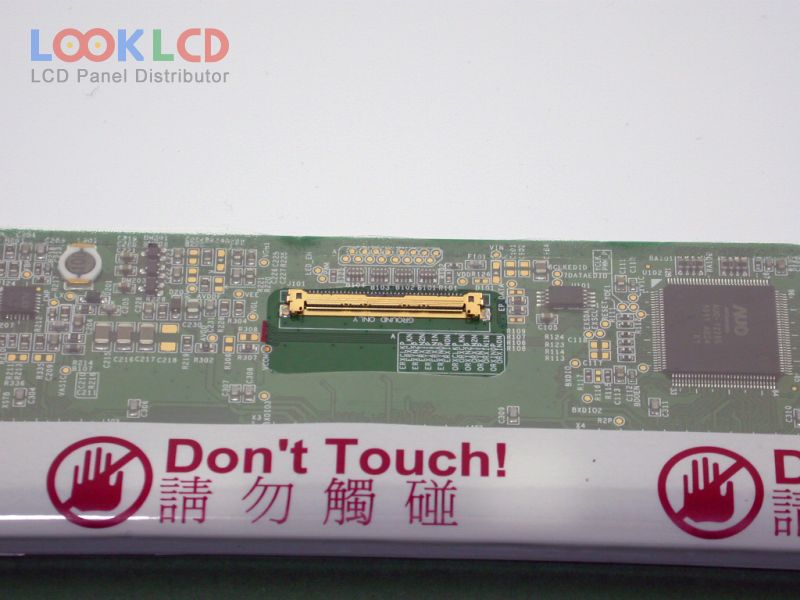

| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLF3 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTN156AT02-D03 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-D01 | Samsung | 15.6 | 1366×768 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LQ164M1LA4A | SHARP | 16.4 | 1920×1080 |
| LTD104KA1S | TOSHIBA | 10.4 | 1024×768 |
| LTD121EQ3B | TOSHIBA | 12.1 | 1280×800 |
| LTN150PF-L03 | Samsung | 15.0 | 1400×1050 |
| LTN154X2-L02 | Samsung | 15.4 | 1280×800 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N141C3-L04 | Innolux | 14.1 | 1440×900 |
| NT140WHM-N31 | BOE | 14.0 | 1366×768 |
| QD14FL02 Rev.01 | QDI | 14.1 | 1400×1050 |
