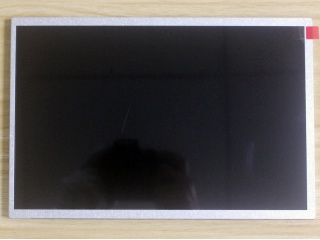

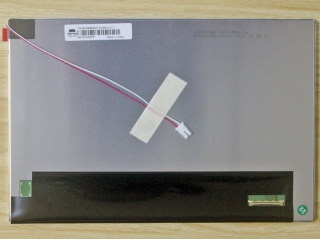

| PartNumber | AM-1280800W2TZQW-00H |
| Marca | AMPIRE |
| mărimea | 10.1 |
| Aplicație | Industrial |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | 7S4P |
| Interfață | LVDS |
| producător | AMPIRE |
| marimea ecranului | 10.1 inch |
| numărul de pixeli | 1280(RGB)×800 (WXGA) 149PPI |
| zona activa (mm) | 216.96 × 135.6 (H×V) |
| zona rama (mm) | - |
| luminanţă | 1000 cd/m² (Typ.) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| vedere buna la | Symmetry |
| adâncimea culorii | 16.7M 44% NTSC |
| masa | 160g (Max.) |
| rată de reîmprospătare | 60Hz |
| tipul semnalului | LVDS (1 ch, 8-bit) , 40 pins Connector |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| numele modelului | AM-1280800W2TZQW-00H |
| tipul de ecran | LCM , a-Si TFT-LCD |
| aranjament | RGB Vertical Stripe |
| contur (mm) | 231 × 154.4 × 7.9 (H×V×D) |
| tratament | Glare (Haze 0%), Hard coating (3H) |
| Raport de contrast | 800 : 1 (Typ.) (TM) |
| raspuns | 25 (Typ.)(Tr+Td) ms |
| modul de lucru | ADS, Normally Black, Transmissive |
| lumina de fundal | 7S4P WLED , 50K hours , No Driver |
| folosit pentru | Industrial |
| touch screen | Without |
| AM-1280800N1TZQW-T06H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| AM-1280800N2TZQW-T48H | AMPIRE | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| CLAA101FP05 | CPT | 10.1 | 1920×1200 |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| LP101WH2-TLA2 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
