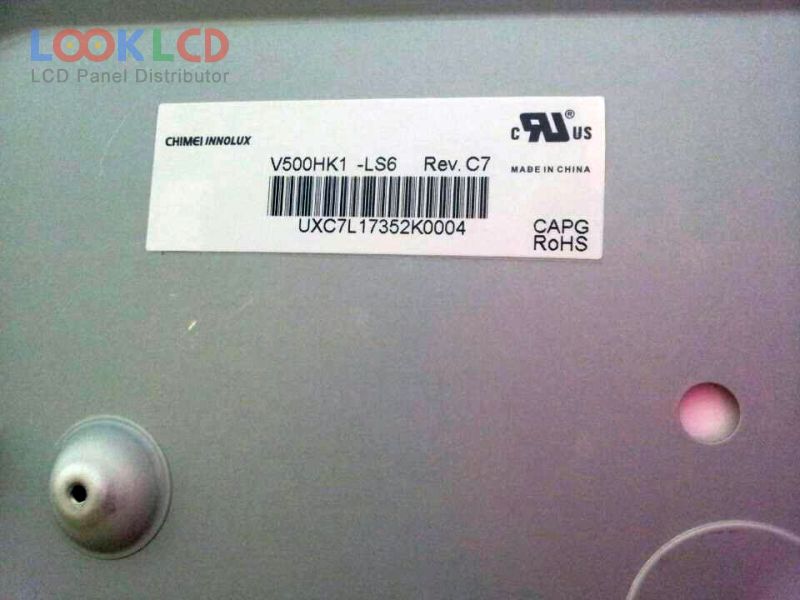

| PartNumber | V500HK1-LS6 Rev.C7 |
| Marca | Innolux |
| mărimea | 50 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 5000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | V500HK1-LS6 Rev.C7 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 50 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | Super MVA, Normally Black, Transmissive |
| Zonă activă | 1095.84×616.41 mm |
| contur | 1115.04×638.41 mm |
| suprafaţă | Antiglare (Haze 1%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 5000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 6.5 (Typ.)(G to G) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frecvență | 120Hz (60Hz Input) |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 8-bit), 61 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
