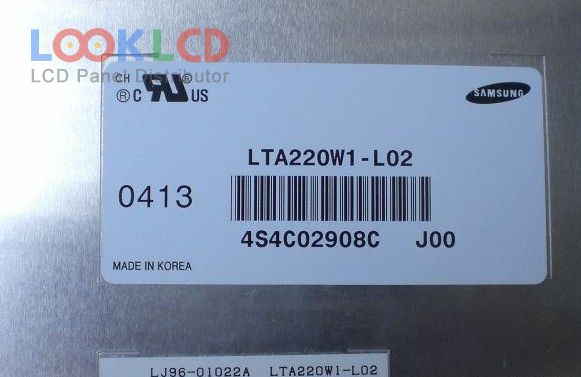

| PartNumber | LTA220W1-L02 |
| Marca | Samsung |
| mărimea | 22.0 |
| Aplicație | LCTV |
| Rezoluţie | 1280×720 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTA220W1-L02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 22.0 inch |
| rezoluţie | 1280(RGB)×720 , WXGA |
| modul de afișare | PVA, Normally Black, Transmissive |
| Zonă activă | 487.58×274.32 mm |
| contur | 525.6×307.9 mm |
| suprafaţă | Antiglare (Haze 44%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 15/8 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (1 ch, 8-bit), 20 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | LCTV |
