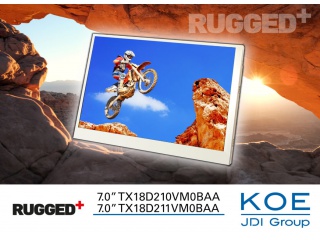

| PartNumber | TX18D211VM0BAA |
| Marca | KOE |
| mărimea | 7.0 |
| Aplicație | Industrial Outdoor H |
| Rezoluţie | 800×480 |
| Compoziţie | LTPS TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | KOE |
| model de panou | TX18D211VM0BAA |
| dimensiunea panoului | 7.0" |
| tip panou | LTPS TFT-LCD, LCM |
| rezoluţie | 800(RGB)×480, WVGA, 133PPI |
| format de pixeli | RGB Vertical Stripe |
| zona de afisare | 152.4(W)×91.44(H) mm |
| deschiderea ramei | 156.2(W)×94.5(H) mm |
| dimensiunea conturului | 167.7(W)×109.5(H) ×20.3(D) mm |
| suprafaţă | - |
| luminozitatea | 1200 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| modul de afișare | IPS, Normally Black, Transmissive |
| cea mai bună vedere pe | Symmetry |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| culorile afișajului | 262K 73% NTSC |
| tip lampa | WLED , 50K hours , With LED Driver |
| frecvență | 60Hz |
| touch screen | Without |
| greutatea panoului | 219g (Typ.) |
| aplicarea | Industrial Outdoor High Brightness Automotive Display |
| interfață de semnal | LVDS (1 ch, 6-bit) , 20 pins Connector |
| tensiune de intrare | 3.3V (Typ.) |
| mediu inconjurator | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
