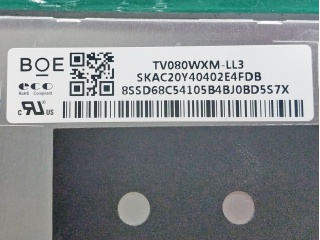

| PartNumber | TV080WXM-LL3 |
| Marca | BOE |
| mărimea | 8.0 |
| Aplicație | Pad & Tablet |
| Rezoluţie | 800×1280 |
| Compoziţie | a-Si TFT-LCD, Assemb |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca | BOE |
| model | TV080WXM-LL3 |
| dimensiunea diagonalei | 8.0 inch |
| tip | a-Si TFT-LCD, Assembly |
| format de pixeli | 800(RGB)×1280 [WXGA] 188PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 107.64(H)×172.224(V) mm |
| contur dim. | 116.9(H)×194.17(V) ×5.35(D) mm |
| zona rama | - |
| tratament | Clear, Hard coating |
| luminanţă | 350 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 30(Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10) |
| mod de operare | ADS, Normally Black, Transmissive |
| culoare suport | 16.7M 60% NTSC |
| sursă de lumină | WLED [5S4P] , W/O Driver |
| greutate | 150g (Typ.) |
| proiectat pentru | Pad & Tablet |
| rata de cadre | 60Hz |
| panou tactil | PCAP |

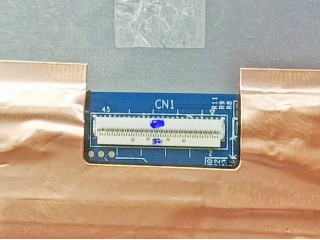

| tipul de interfață | MIPI (4 data lanes) , 45 pins Connector |
| alimentare electrică | 1.8/6.0/-6.0/19/-11V (Typ.)(VDDI/AVDD/AVEE/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
