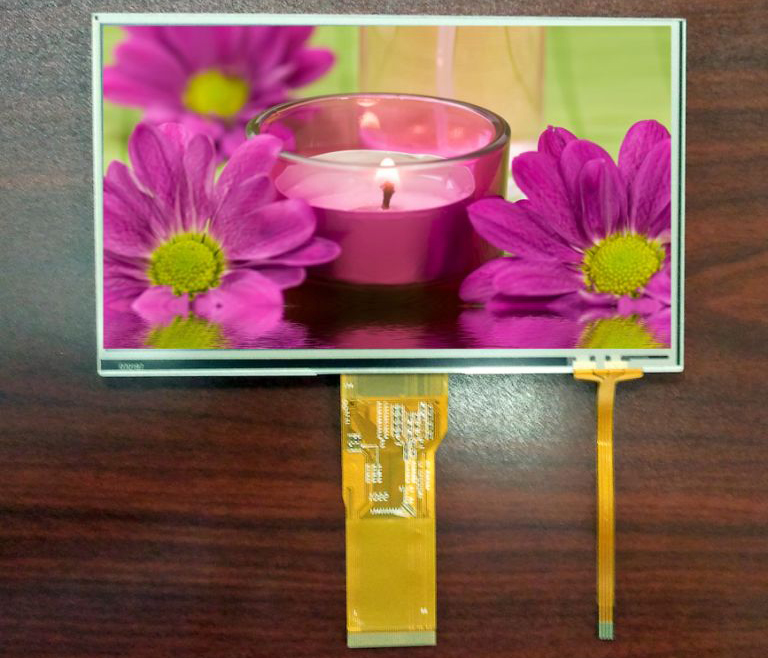

| PartNumber | TM070RBH10-00 |
| Marca | TIANMA |
| mărimea | 7.0 |
| Aplicație | Industrial Digital P |
| Rezoluţie | 800×480 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 500:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | 3S8P |
| Interfață | Parallel |
| producător | TIANMA |
| numele modelului | TM070RBH10-00 0 Compatible |
| marimea ecranului | 7.0 inch |
| tipul de ecran | LCM , a-Si TFT-LCD |
| numărul de pixeli | 800(RGB)×480 (WVGA) 134PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 154.08 × 85.92 (H×V) |
| contur (mm) | 164.9 × 100 × 7.1 (H×V×D) |
| zona rama (mm) | - |
| tratament | Antiglare |
| luminanţă | 280 cd/m² (Typ.) |
| Raport de contrast | 500 : 1 (Typ.) (TM) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10) |
| raspuns | 25 (Typ.)(Tr+Td) ms |
| vedere buna la | 12 o'clock |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 262K/16.2M 49% NTSC |
| lumina de fundal | 3S8P WLED , 20K hours , No Driver |
| masa | TBD |
| folosit pentru | Industrial Digital Photo Frame Portable DVD Player MP3 PMP |
| rată de reîmprospătare | 60Hz |
| touch screen | 4-wire Resistive Touch |
| tipul semnalului | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
| alimentare cu tensiune | 3.3/10.4/16/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| max. evaluări | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
