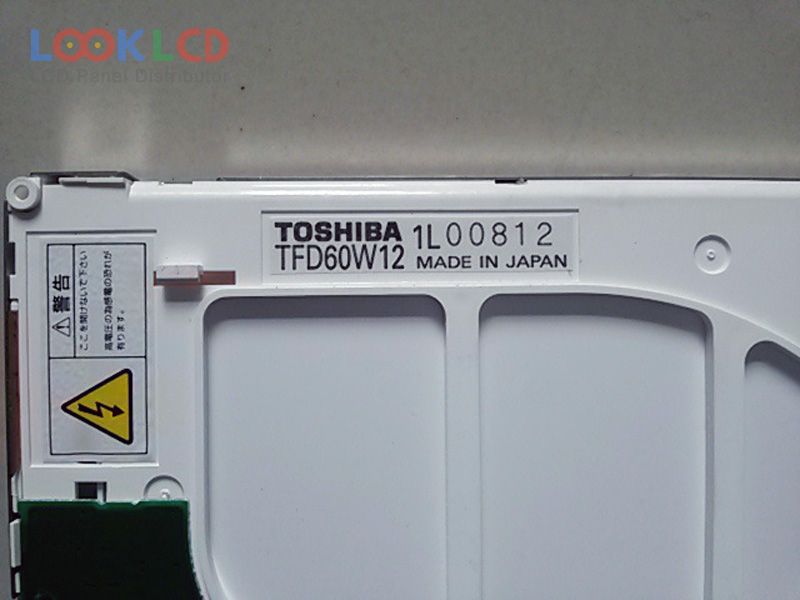

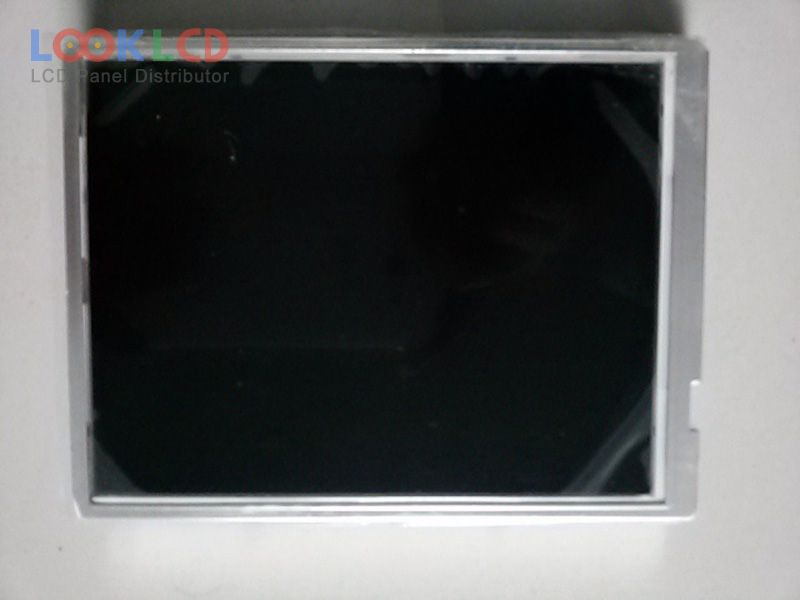

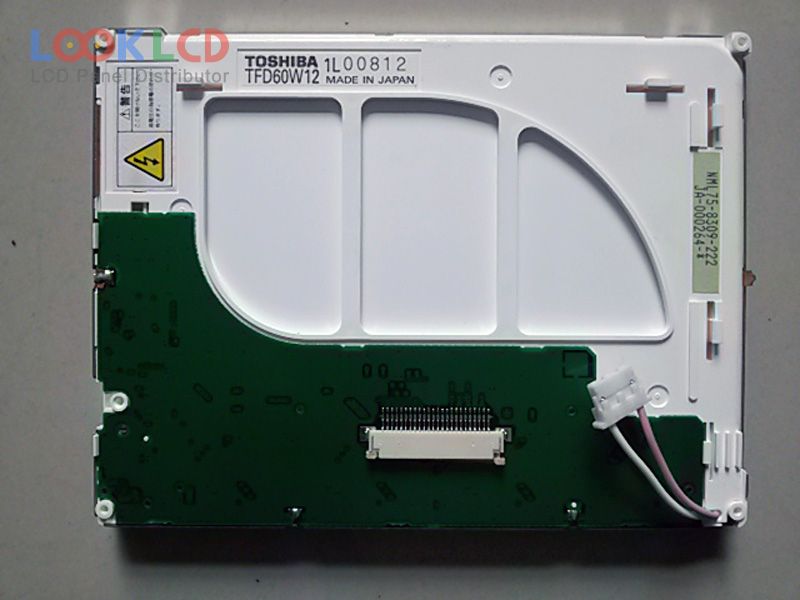

| PartNumber | TFD60W12 |
| Marca | TOSHIBA |
| mărimea | 6.0 |
| Aplicație | IA |
| Rezoluţie | 320×234 |
| Compoziţie | LCM |
| Luminozitate | 280 |
| CR | 80:1 |
| Culori | Full color |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | TOSHIBA |
| model de panou | TFD60W12 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.0 inch |
| rezoluţie | 320(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 121.92×89.154 mm |
| contur | 144×109.4 mm |
| suprafaţă | |
| luminozitatea | 280 cd/m² (Typ.) |
| Raport de contrast | 80:1 (Typ.) |
| culorile afișajului | Full color |
| timp de raspuns | 70/40 (Max.)(Tr/Td) |
| unghi de vedere | 45/45/45/15 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 24 pins |
| tensiune de intrare | 5.0/13.0/23.0/-5.0V (Typ.)(VDD/VBB/VGG/VEE) |
| aplicarea | IA |
