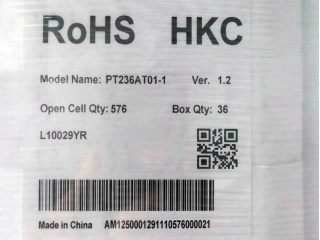

| PartNumber | PT236AT01-1 |
| Marca | HKC |
| mărimea | 23.6 |
| Aplicație | TV Sets |
| Rezoluţie | 1366×768 |
| Compoziţie | CELL , a-Si TFT-LC |
| Luminozitate | |
| CR | 3000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No |
| Interfață | |
| producător | HKC |
| marimea ecranului | 23.6 inch |
| numărul de pixeli | 1366(RGB)×768 (WXGA) 66PPI |
| zona activa (mm) | 521.471 × 293.184 (H×V) |
| zona rama (mm) | - |
| luminanţă | 0 (cd/m²) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10) |
| vedere buna la | Symmetry |
| grosimea sticlei | 0.50+0.50 mm |
| adâncimea culorii | 16.7M 68% NTSC |
| masa | 500g (Typ.) |
| rată de reîmprospătare | 60Hz |
| numele modelului | PT236AT01-1 |
| tipul de ecran | CELL , a-Si TFT-LCD |
| aranjament | RGB Vertical Stripe |
| contur (mm) | 535.471 × 306.404 × 1.37 (H×V×D) |
| tratament | Antiglare (Haze 3%), Hard coating (3H) |
| Raport de contrast | 3000 : 1 (Typ.) (TM) |
| modul de lucru | FSA, Normally Black, Transmissive |
| raspuns | 9.5 (Typ.)(G to G) ms |
| transmisivitatea | 6.0% (Typ.)(with Polarizer) |
| lumina de fundal | No B/L |
| folosit pentru | TV Sets |
| touch screen | Without |
| HR236WU1-300 | BOE | 23.6 | 1920×1080 |
| LQ235D1LW03 | SHARP | 23.6 | 1920×1080 |
| M236H3-LA2 | Innolux | 23.6 | 1920×1080 |
| M236HJK-L5B | Innolux | 23.6 | 1920×1080 |
| MV236WHM-N10 | BOE | 23.6 | 1366×768 |
| P236MWF1 R0 | IVO | 23.6 | 1920×1080 |
| V236BJ1-LE1 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P01 Rev.C3 | Innolux | 23.6 | 1366×768 |
| V236BJ1-PE2 | Innolux | 23.6 | 1366×768 |
| V236H1-LE4 | Innolux | 23.6 | 1920×1080 |
