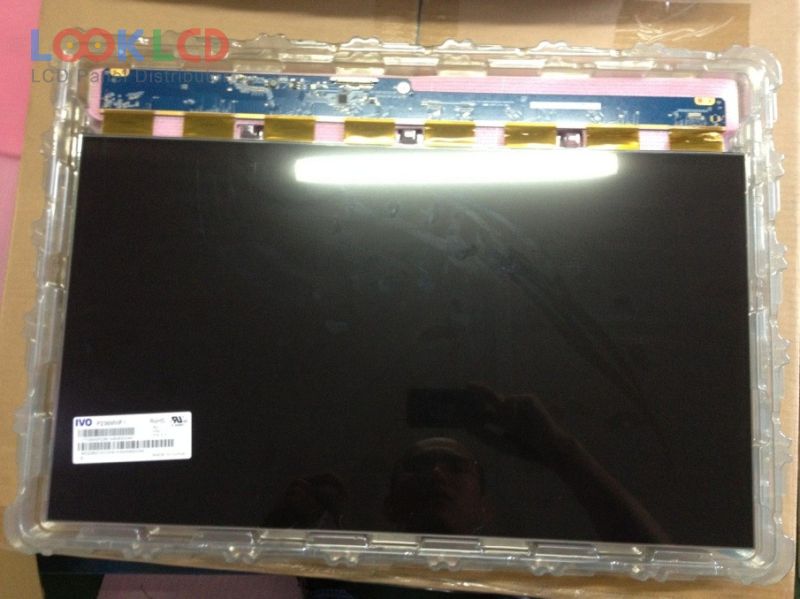

| PartNumber | P236MWF1 R0 |
| Marca | IVO |
| mărimea | 23.6 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | IVO |
| model de panou | P236MWF1 R0 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 23.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 521.28×293.22 mm |
| contur | 534.48×306.42×1.83 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| adâncimea sticlei | 0.70+0.70 mm |
| transmisivitatea | 5.45% (Typ.)(with Polarizer) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 3.5/1.5 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| HR236WU1-300 | BOE | 23.6 | 1920×1080 |
| HR236WU3-301 | BOE | 23.6 | 1920×1080 |
| M236H1-P01 | Innolux | 23.6 | 1920×1080 |
| M236HGE-L20 | Innolux | 23.6 | 1920×1080 |
| M236HGK-L30 | Innolux | 23.6 | 1920×1080 |
| MV236WHM-N10 | BOE | 23.6 | 1366×768 |
| P236MWF1 R0 | IVO | 23.6 | 1920×1080 |
| P236MWF1 R2 | IVO | 23.6 | 1920×1080 |
| V236BJ1-LE2 | Innolux | 23.6 | 1366×768 |
| V236BJ1-P01 | Innolux | 23.6 | 1366×768 |
| CLAA260WU09M | CPT | 25.5 | 1920×1200 |
| IAQX10M | IDTech | 15.0 | 2048×1536 |
| LM215WF3-SDD1 | LG Display | 21.5 | 1920×1080 |
| LM230WF5-TLD2 | LG Display | 23.0 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM260WU1-SLB1 | LG Display | 25.5 | 1920×1200 |
| M220Z1-L01 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L09 | Innolux | 22.0 | 1680×1050 |
| M240HW01 V1 | AUO | 24.0 | 1920×1080 |
| M240UW01 V2 | AUO | 24.0 | 1920×1200 |
