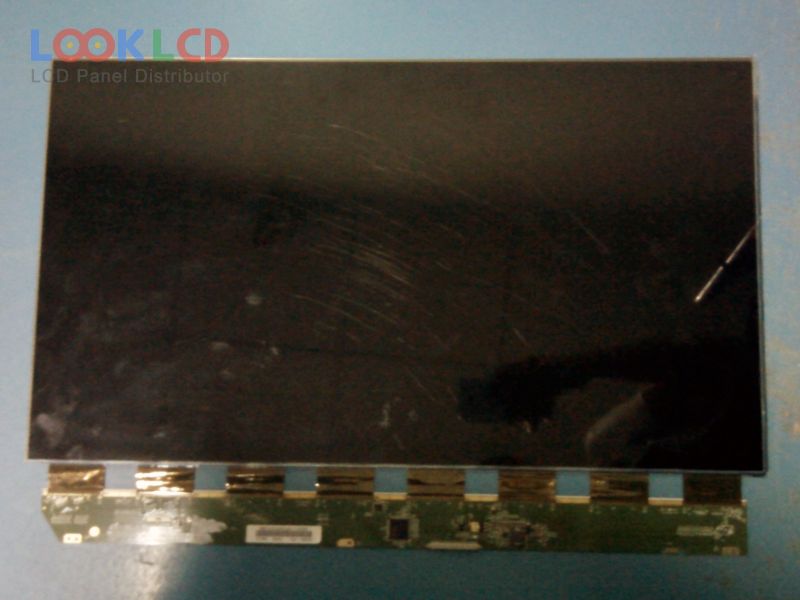

| PartNumber | M236H1-P01 |
| Marca | Innolux |
| mărimea | 23.6 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | M236H1-P01 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 23.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 521.28×293.22 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| transmisivitatea | 5.25% (Typ.)(with Polarizer) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 1.5/3.5 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
