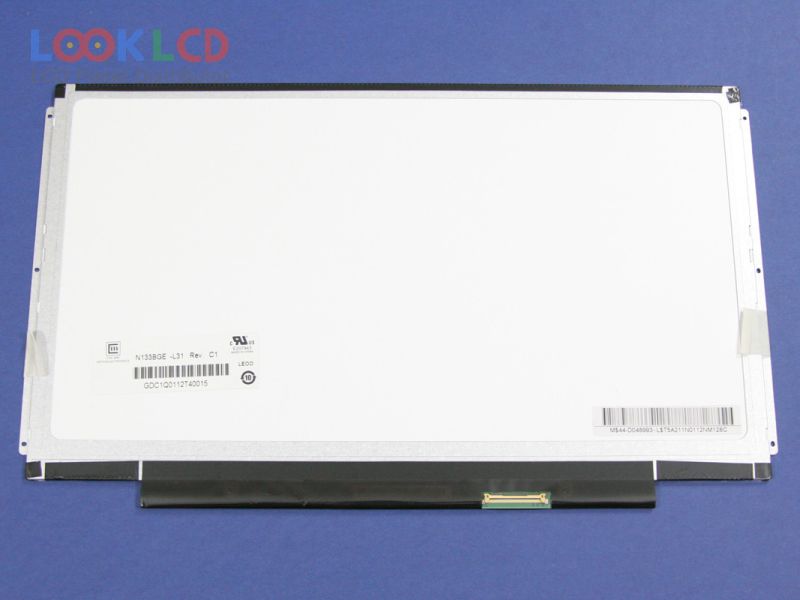

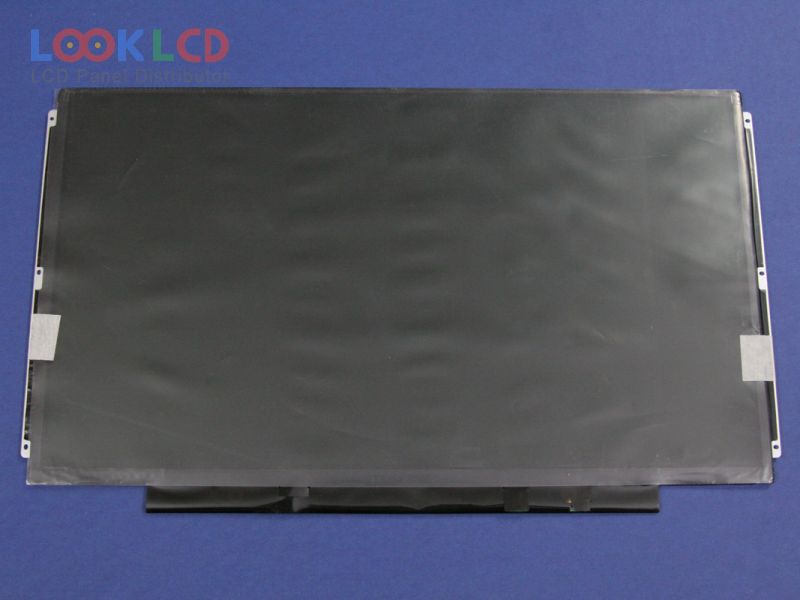

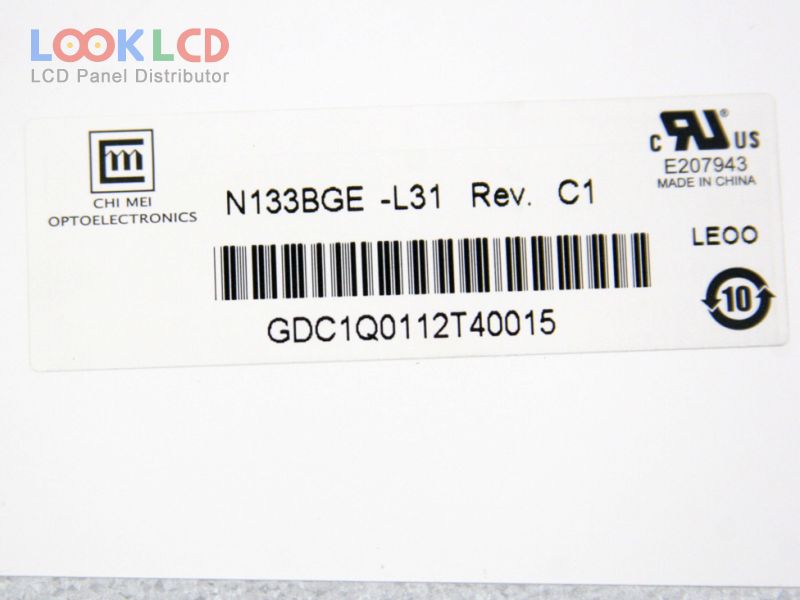

| PartNumber | N133BGE-L31 |
| Marca | Innolux |
| mărimea | 13.3 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | N133BGE-L31 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 13.3 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 293.42×164.97 mm |
| contur | 314.1×188.75×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Antiglare |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 8/8 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 10S3PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| N133B6-L02 | Innolux | 13.3 | 1366×768 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| N133BGE-E51 | Innolux | 13.3 | 1366×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N133BGE-L21 | Innolux | 13.3 | 1366×768 |
| N133BGE-L31 | Innolux | 13.3 | 1366×768 |
| N133BGE-L41 | Innolux | 13.3 | 1366×768 |
| N133BGE-LB1 | Innolux | 13.3 | 1366×768 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| LP133WH1-TLA2 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLHA | LG Display | 13.3 | 1366×768 |
| LP154WE2-TLB1 | LG Display | 15.4 | 1680×1050 |
| LP156WH2-TLC2 | LG Display | 15.6 | 1366×768 |
| LTN121AT02-001 | Samsung | 12.1 | 1280×800 |
| LTN133YL01-L01 | Samsung | 13.3 | 3200×1800 |
| LTN141AT08-304 | Samsung | 14.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N150X7-L01 | Innolux | 15.0 | 1024×768 |
