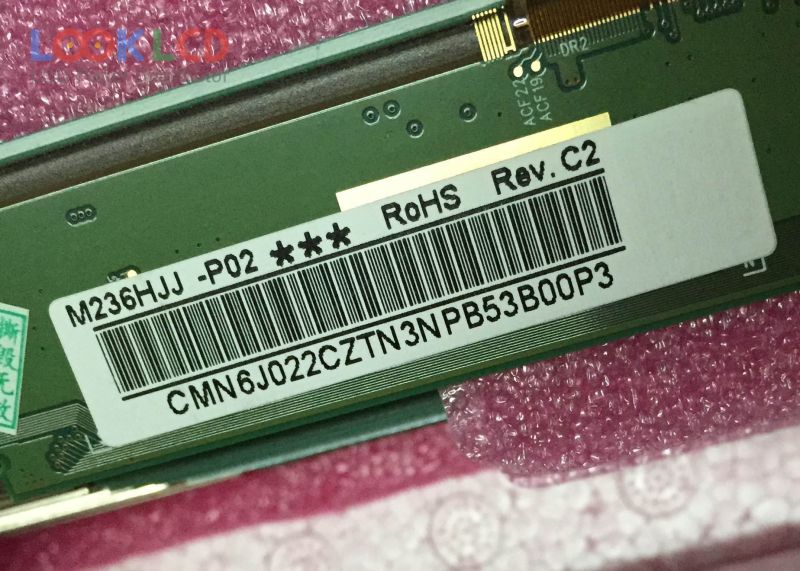

| PartNumber | M236HJJ-P02 |
| Marca | Innolux |
| mărimea | 23.6 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 3000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | M236HJJ-P02 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 23.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | Super MVA, Normally Black, Transmissive |
| Zonă activă | 521.28×293.22 mm |
| contur | 534.28×306.252 mm |
| suprafaţă | Antiglare (Haze 3%), Hard coating (3H) |
| transmisivitatea | 4.6% (Typ.)(with Polarizer) |
| Raport de contrast | 3000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 10 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
