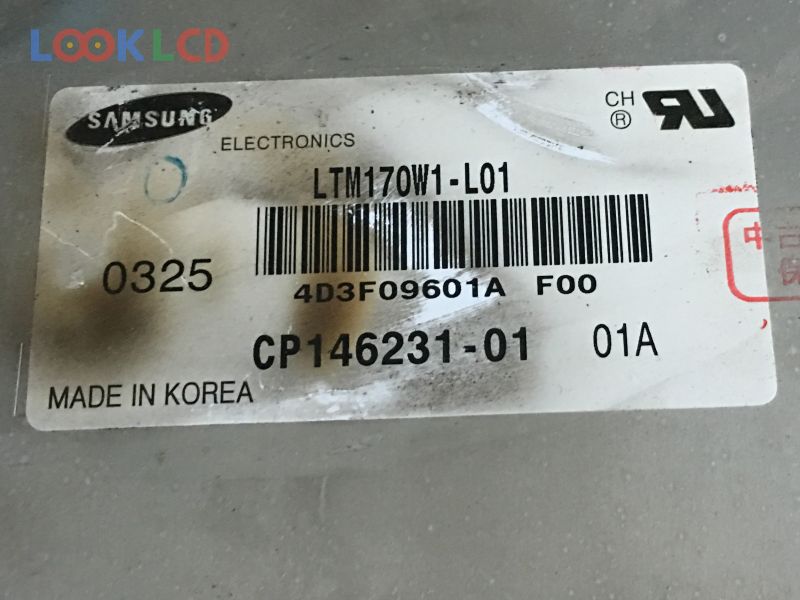

| PartNumber | LTM170W1-L01 |
| Marca | Samsung |
| mărimea | 17.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×768 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 400:1 |
| Culori | 16.2M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM170W1-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1280(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 370.56×222.336 mm |
| contur | 404×258×16.7 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC) |
| timp de raspuns | 5/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DMPC |
