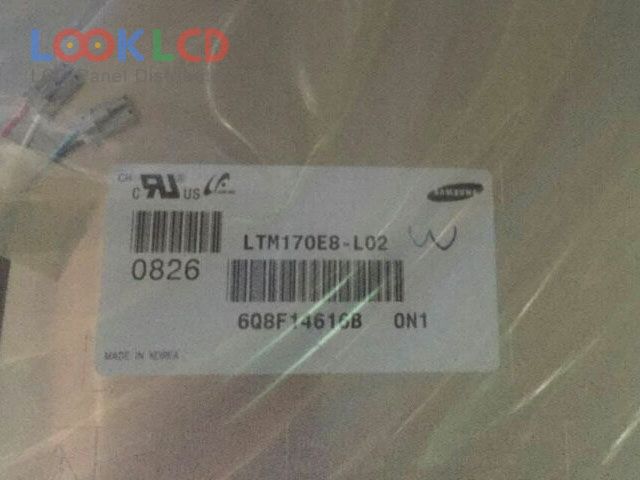

| PartNumber | LTM170E8-L02 |
| Marca | Samsung |
| mărimea | 17.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM170E8-L02 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | PVA, Normally Black, Transmissive |
| Zonă activă | 337.92×270.336 mm |
| contur | 354.9×290.3×13.3 mm |
| suprafaţă | Antiglare (Haze 44%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 15/10 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| LTM170E6-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E6-L04 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L03 | Samsung | 17.0 | 1280×1024 |
| LTM170E8-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L21 | Samsung | 17.0 | 1280×1024 |
| LTM170EX-L31 | Samsung | 17.0 | 1280×1024 |
| LTM170W1-L01 | Samsung | 17.0 | 1280×768 |
| LC215DTCA | PANDA | 21.5 | 1920×1080 |
| LM190E09-TLK1 | LG Display | 19.0 | 1280×1024 |
| LM230WF5-TLH1 | LG Display | 23.0 | 1920×1080 |
| LQ181E1LW31 | SHARP | 18.1 | 1280×1024 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
| M201UN03 V0 | AUO | 20.1 | 1600×1200 |
| M220EW01 V2 | AUO | 22.0 | 1680×1050 |
| M230HGE-L20 | Innolux | 23.0 | 1920×1080 |
| M270HW01 V1 | AUO | 27.0 | 1920×1080 |
| MT185WHM-N10 | BOE | 18.5 | 1366×768 |
