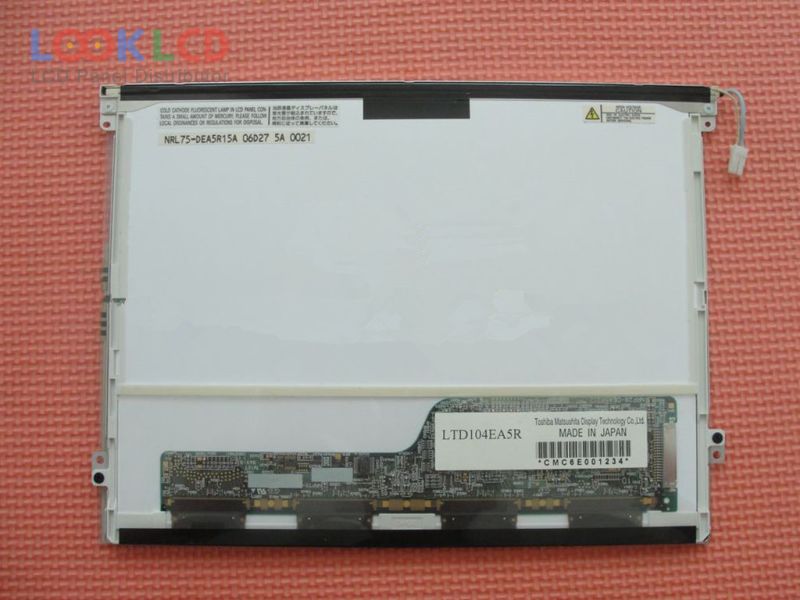

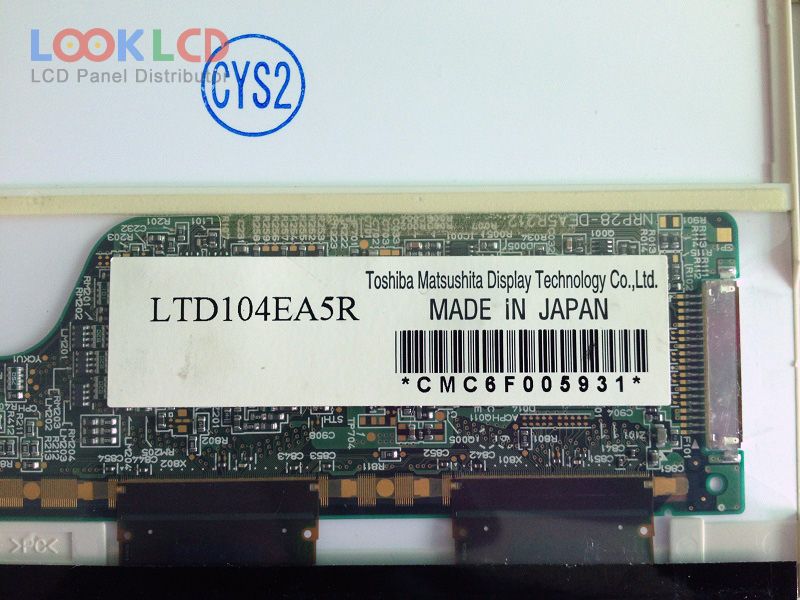

| PartNumber | LTD104EA5R |
| Marca | TOSHIBA |
| mărimea | 10.4 |
| Aplicație | NBPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 170 |
| CR | 100:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | Toshiba Matsushita |
| model de panou | LTD104EA5R |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 210.4×157.8 mm |
| contur | 237.1×173.2×4.9 mm |
| suprafaţă | |
| luminozitatea | 170 cd/m² (Typ.) |
| Raport de contrast | 100:1 (Min.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 50/50 (Max.)(Tr/Td) |
| unghi de vedere | 40/40/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
