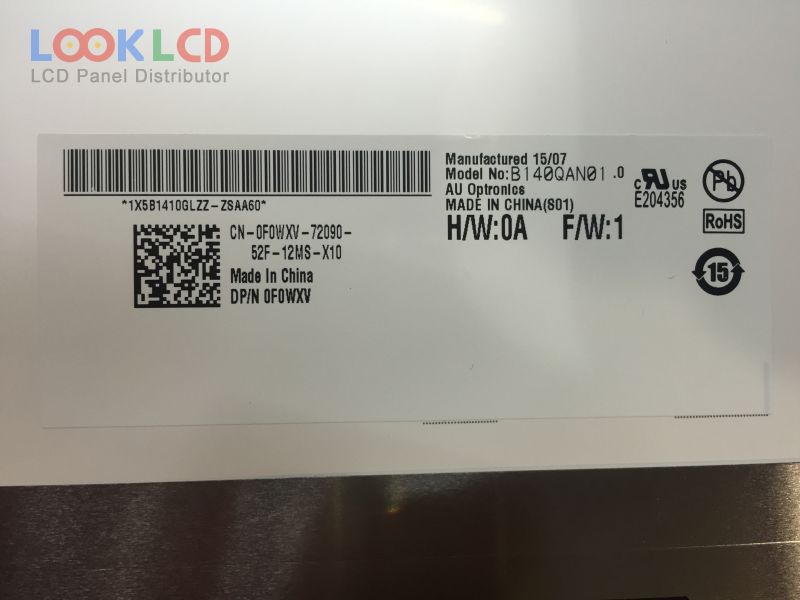

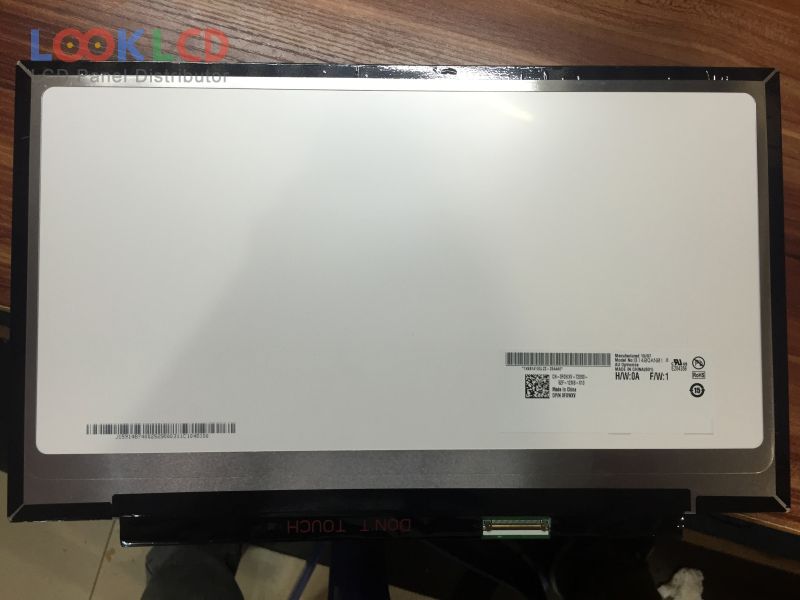

| PartNumber | B140QAN01.0 |
| Marca | AUO |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 2560×1440 |
| Compoziţie | LCM |
| Luminozitate | 340 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | AUO |
| model de panou | B140QAN01.0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 2560(RGB)×1440 , Quad-HD |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 309.35×174.01 mm |
| contur | 320.4×205.1×2.6 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 340 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (4 Lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
