| PartNumber | HT140WXB-601 |
| Marca | BOE |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | HT140WXB-601 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.399×173.952 mm |
| contur | 323.5×192×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare (Haze 40%) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S5PWLEDEmbedded (LED Driver) |

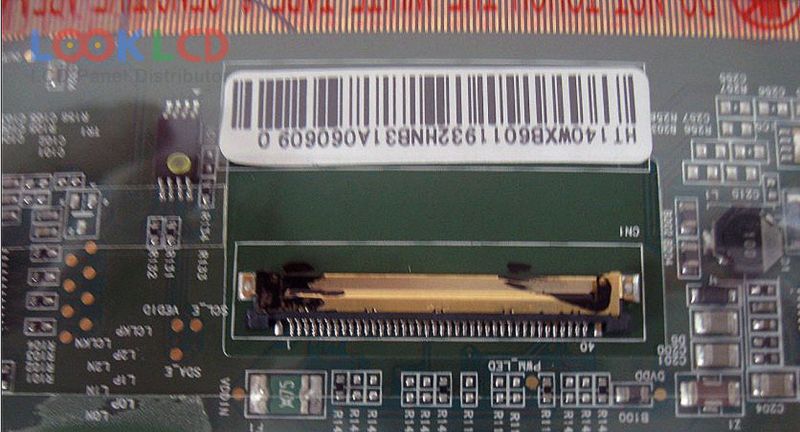

| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B140XTN01.3 | AUO | 14.0 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TLA2 | LG Display | 14.0 | 1366×768 |
| LTN140AT11-L02 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| B121EW09 V2 | AUO | 12.1 | 1280×800 |
| B140XTN02.3 | AUO | 14.0 | 1366×768 |
| LP140WH4-TLD1 | LG Display | 14.0 | 1366×768 |
| LP156WF3-SLB3 | LG Display | 15.6 | 1920×1080 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| LTN133AT25-T01 | Samsung | 13.3 | 1366×768 |
| LTN140AT18-201 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| N140HGE-EA1 | Innolux | 14.0 | 1920×1080 |
| N141I3-L01 | Innolux | 14.1 | 1280×800 |
