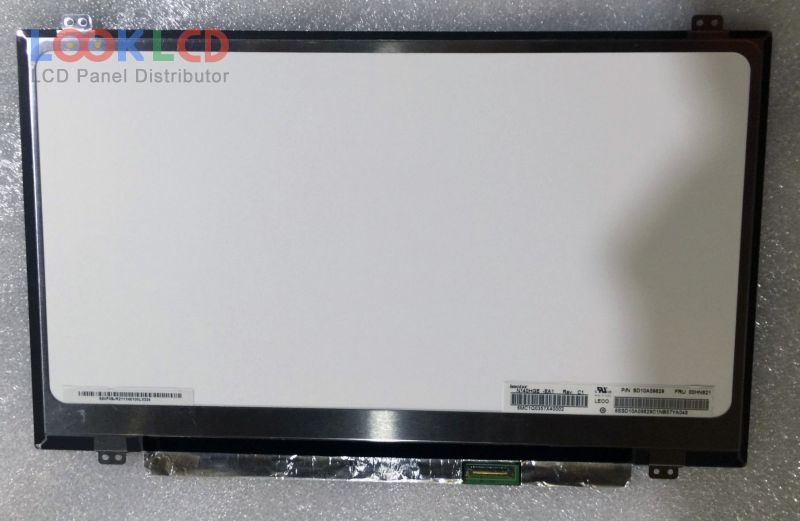

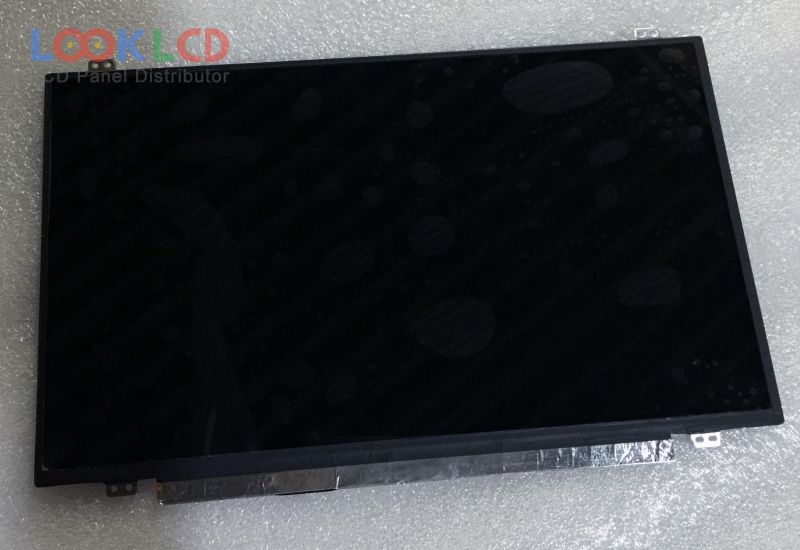

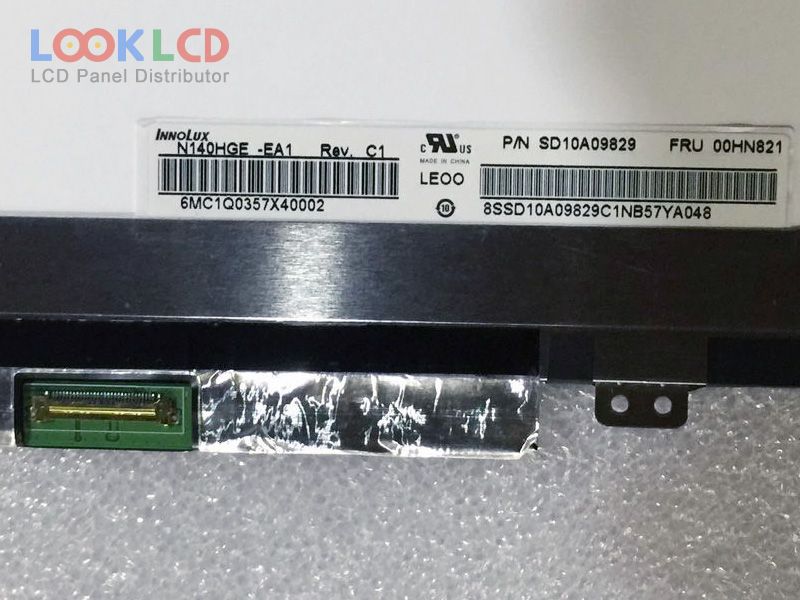

| PartNumber | N140HGE-EA1 |
| Marca | Innolux |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | INNOLUX |
| model de panou | N140HGE-EA1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.14×173.89 mm |
| contur | 320.4×187.1×3 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Antiglare (Haze 24%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 3/7 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (2 Lanes), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
