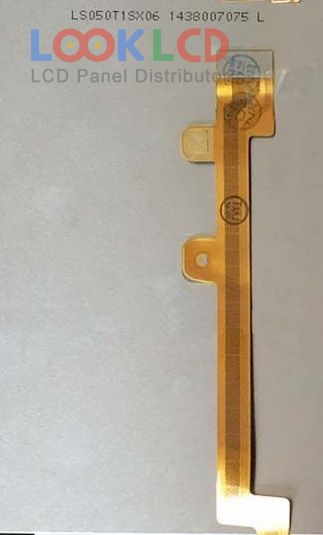

| PartNumber | LS050T1SX06 |
| Marca | SHARP |
| mărimea | 5.0 |
| Aplicație | MPH |
| Rezoluţie | 1080×1920 |
| Compoziţie | LCM |
| Luminozitate | 480 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | SHARP |
| model de panou | LS050T1SX06 |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 1080(RGB)×1920 , FHD |
| modul de afișare | New Mode2, Normally Black, Transmissive |
| Zonă activă | 61.884×110.016 mm |
| contur | 64.3×116.6×1.5 mm |
| suprafaţă | |
| luminozitatea | 480 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193171% |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S2PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 34 pins |
| tensiune de intrare | 1.8/5.0/-5.0V (Typ.)(IOVDD/VSP/VSN) |
| aplicarea | MPH |
