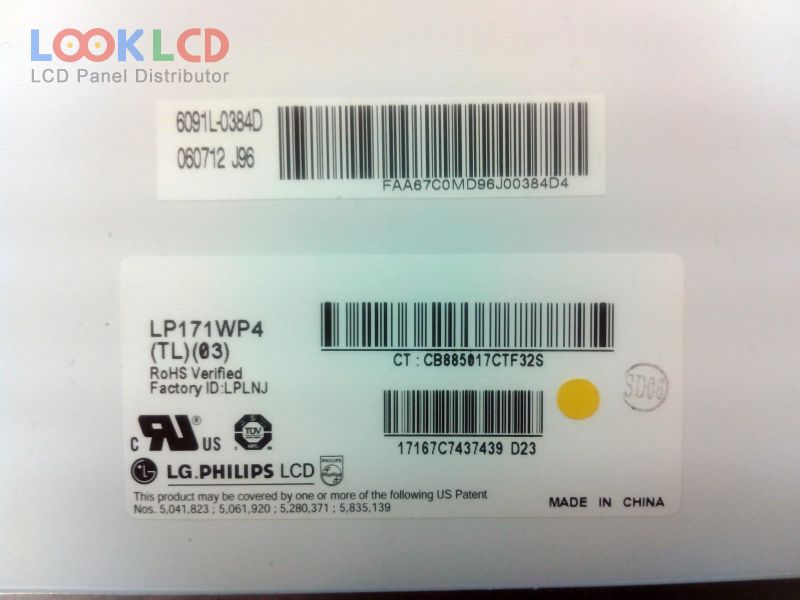

| PartNumber | LP171WP4-TL03 |
| Marca | LG Display |
| mărimea | 17.1 |
| Aplicație | NBPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG.Philips LCD |
| model de panou | LP171WP4-TL03 9 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.1 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 367.2×229.5 mm |
| contur | 382.2×244.5×6.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
