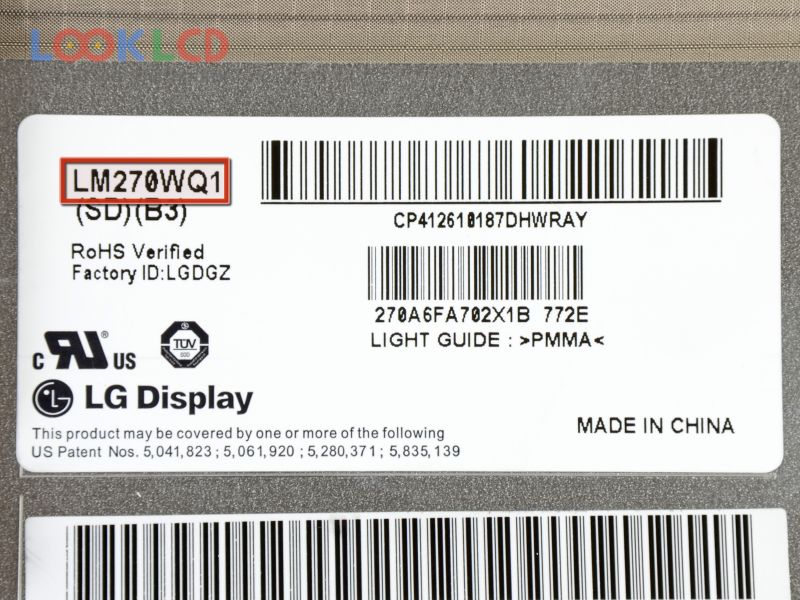

| PartNumber | LM270WQ1-SDB3 |
| Marca | LG Display |
| mărimea | 27.0 |
| Aplicație | DMPC |
| Rezoluţie | 2560×1440 |
| Compoziţie | LCM |
| Luminozitate | 420 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | LG Display |
| model de panou | LM270WQ1-SDB3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 27.0 inch |
| rezoluţie | 2560(RGB)×1440 , Quad-HD |
| modul de afișare | H-IPS, Normally Black, Transmissive |
| Zonă activă | 596.736×335.664 mm |
| contur | 630×376.13×21.9 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H), Antireflection |
| luminozitatea | 420 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), sRGB |
| timp de raspuns | 6.5/7.5 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 stringsWLEDWithout Driver |
| interfață de semnal | eDP (4 Lanes), 50 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | DMPC |
