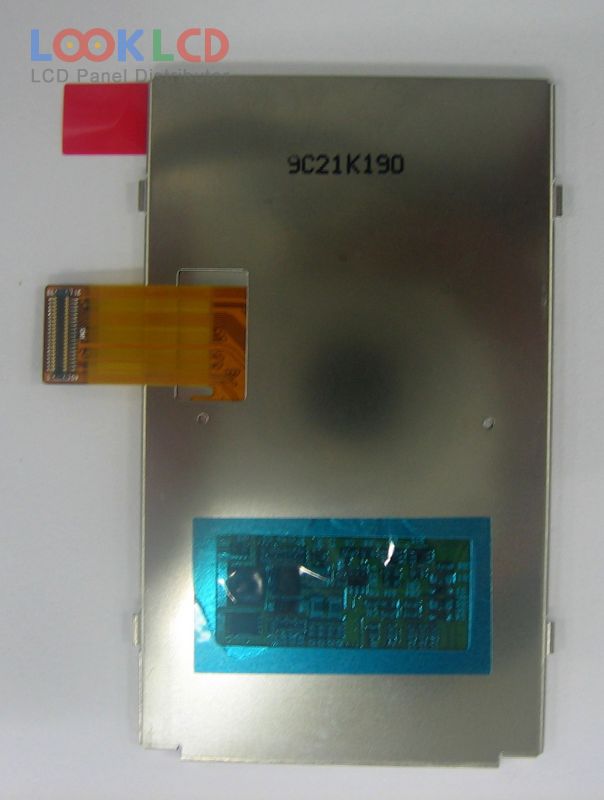

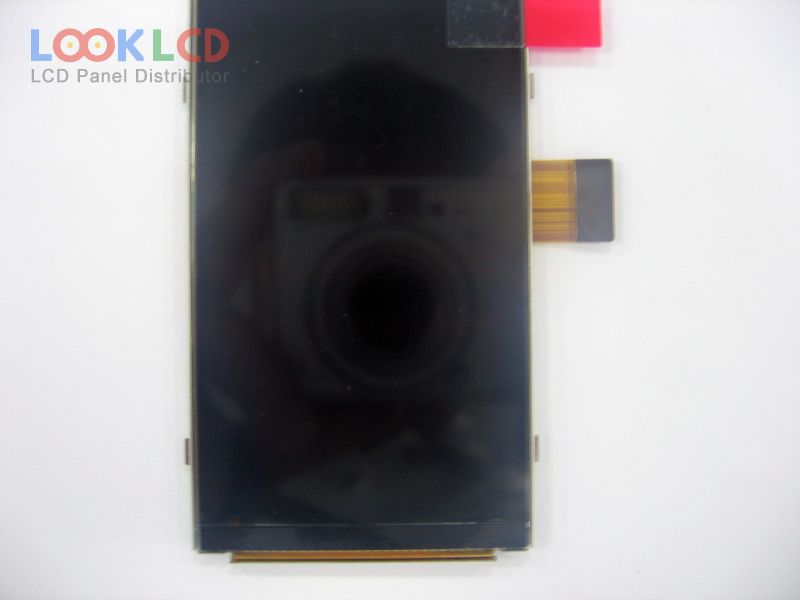

| PartNumber | LH300WQ1-ED01 |
| Marca | LG Display |
| mărimea | 3.0 |
| Aplicație | MPH |
| Rezoluţie | 240×400 |
| Compoziţie | OLED |
| Luminozitate | 210 |
| CR | 2000:1 |
| Culori | 65K/262K |
| Iluminare de fundal | self |
| Interfață | CPU/RGB/SPI |
| marca panoului | LG Display |
| model de panou | LH300WQ1-ED01 |
| tip panou | AM-OLED , OLED |
| dimensiunea panoului | 3.0 inch |
| rezoluţie | 240(RGB)×400 , WQVGA |
| Zonă activă | 38.88×64.8 mm |
| contur | 44×74.6 mm |
| suprafaţă | Hard coating |
| luminozitatea | 210 cd/m² (Typ.) |
| Raport de contrast | 2000 : 1 (Min.) |
| culorile afișajului | 65K/262K , CIE193185% |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | 8/9/16/18-bit 6800/8080 parallel, 6/16/18-bit RGB, SPI, 40 pins |
| tensiune de intrare | 2.8/2.8/3.7V (Typ.)(VDD/VCC/VBATT) |
| aplicarea | MPH |
