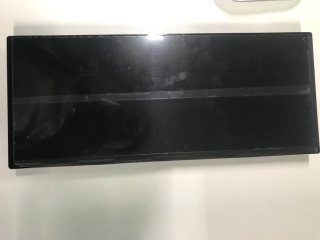

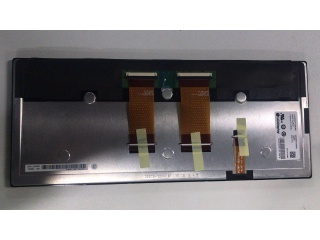

| PartNumber | LA123WF1-SR02 |
| Marca | LG Display |
| mărimea | 12.3 |
| Aplicație | Automotive Display |
| Rezoluţie | 1920×720 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | RSDS |
| marca | LG Display |
| dimensiunea diagonalei | 12.3 inch |
| format de pixeli | 1920(RGB)×720 167PPI |
| Zonă activă | 292.032(H)×109.512(V) mm |
| zona rama | - |
| luminanţă | 600 cd/m² (Min.) |
| direcția vizualizării | Symmetry |
| unghi de vedere | 89/89/89/89 (Min.)(CR≥10) |
| culoare suport | 16.7M 86% NTSC |
| greutate | 390/405g (Typ./Max.) |
| rata de cadre | 60Hz |
| tipul de interfață | RSDS (2 Channel) , 110 pins FPC |
| alimentare electrică | 3.3/13.0V (Typ.)(VCC/VDD) |
| mediu inconjurator | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| model | LA123WF1-SR02 |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |
| contur dim. | 310(H)×128(V) ×11.05(D) mm |
| tratament | Antiglare, Antireflection |
| Raport de contrast | 800:1 (Min.) (TM) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| mod de operare | IPS, Normally Black, Transmissive |
| sursă de lumină | WLED [8S6P] , 10K hours , W/O Driver |
| proiectat pentru | Automotive Display |
| panou tactil | Without |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
