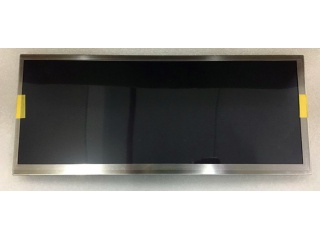

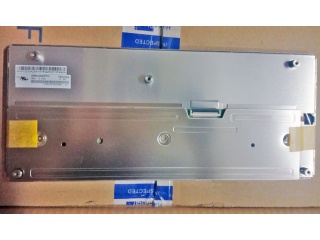

| PartNumber | HSD123KPW1-A30 |
| Marca | HannStar |
| mărimea | 12.3 |
| Aplicație | Automotive Display |
| Rezoluţie | 1920×720 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | 11S4P |
| Interfață | |
| marca panoului | HannStar |
| dimensiunea panoului | 12.3" |
| rezoluţie | 1920(RGB)×720, 167PPI |
| zona de afisare | 292.032(W)×109.512(H) mm |
| dimensiunea conturului | 308.1(W)×130(H) ×15.6(D) mm |
| luminozitatea | 850 cd/m² (Typ.) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| cea mai bună vedere pe | Symmetry |
| culorile afișajului | 16.7M 71% NTSC |
| frecvență | 60Hz |
| greutate | 520g (Typ.) |
| model de panou | HSD123KPW1-A30 |
| tip panou | a-Si TFT-LCD , LCM |
| format de pixeli | RGB Vertical Stripe |
| deschiderea ramei | 294.8(W)×112.1(H) mm |
| suprafaţă | Antiglare |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| modul de afișare | IPS Pro, Normally Black, Transmissive |
| timp de raspuns | 17/18 (Typ.)(Tr/Td) |
| tip lampa | 11S4P WLED , 30K hours , Without Driver |
| touch screen | Without |
| aplicarea | Automotive Display |
